WIKA Miniature resistance thermometer For sanitary applications Model TR21-C with welded flange connection
Applications
■■ Sanitary applications
■■ Food and beverage industry
■■ Pharmaceutical industry, production of active ingredients
■■ Biotechnology and Life-Science-Engineering
Special features
■■ Compact design for space-saving fitting
■■ Simple and fast connection using an M12 plug connector
■■ With direct sensor output (Pt100/Pt1000 in 3 or 4-wire version) or integrated transmitter with 4 ... 20 mA output signal, individually parameterisable with free-of-charge WIKAsoft-TT PC configuration software.
■■ Materials and surface finish quality in accordance with standards of hygienic design.
Description
The model TR21-C resistance thermometer provides temperature measurement in sanitary applications and can be used for the measurement of liquid and gaseous media in the range of -50 ... +250 °C. For application in hazardous areas, intrinsically safe versions are available. These thermometers are fitted with process connections that meet the stringent requirements, in terms of materials and design, of hygienic measuring points. All electrical components are protected against moisture (IP 67 or IP 69K).
The resistance thermometer is available with direct sensor output or integrated transmitter, which can be configured individually via the PC configuration software WIKAsoft-TT. Measuring range, damping, fault signal per NAMUR NE43 and TAG no. can be adjusted.
The welded junction between the thermowell and the flange makes the use of a sealing as additional material in those areas redundant which are in contact with the product. Through the compact design, this resistance thermometer is designed specifically for operation in applications with limited

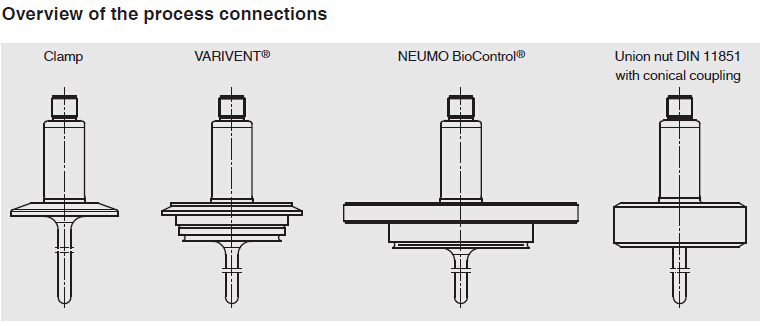

mounting space. Insertion length, process connection, sensor and connection method can each be selected for the respective application within the order information. The electrical connection is
made with an M12 x 1 circular connector.
