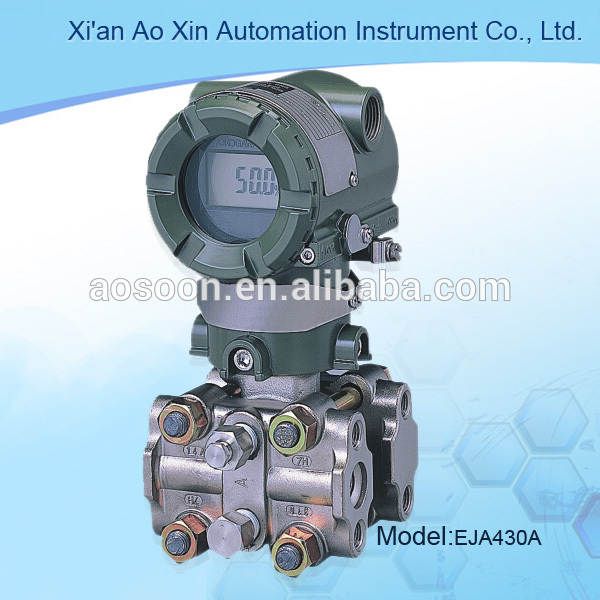

Yokogawa pressure transmitter EJA430A-EMS4A-97DA/NS11

The high performance differential pressure transmitter model EJA430A can be used to measure liquid, gas, or steam flow as well as liquid level, density and pressure. It outputs a 4 to 20 mA DC signal corresponding
to the measured differential pressure. Model EJA430A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM CS™ or XL™ or HART® 275 host.

YokogawaEJA430A-DMS4A-97DA YokogawaEJA430A-EMS4A-97DA YokogawaEJA430A-DAS4A-97DA
YokogawaEJA430A-EAS4A-97DA YokogawaEJA430A-DBS4A-97DA YokogawaEJA430A-EBS4A-97DA
YokogawaEJA430A-DMS4A-97NA YokogawaEJA430A-EMS4A-97NA YokogawaEJA430A-DAS4A-97NA
YokogawaEJA430A-EAS4A-97NA YokogawaEJA430A-DBS4A-97NA YokogawaEJA430A-EBS4A-97NA
YokogawaEJA430A-DMS5A-97DA YokogawaEJA430A-EMS5A-97DA YokogawaEJA430A-DAS5A-97DA
YokogawaEJA430A-EAS5A-97DA YokogawaEJA430A-DBS5A-97DA YokogawaEJA430A-EBS5A-97DA
YokogawaEJA430A-DMS5A-97NA YokogawaEJA430A-EMS5A-97NA YokogawaEJA430A-DAS5A-97NA

Specifications
  EJA430A Gauge Pressure Transmitter
A Capsule B Capsule
Range -0.1 to 3 MPa
(-15 to 430 psi)
-0.1 to 14 MPa
(-15 to 2000 psi)
Span 0.03 to 3 MPa
(4.3 to 430 psi)
0.14 to 14 MPa
(20 to 2000 psi)
Accuracy ±0.065% ±0.065%
Degrees of protection IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates FM, CENELEC ATEX, CSA, IECEx
Output 4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply voltage BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature -40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature -40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum overpressure 4.5 MPa (645 psig) 21 MPa (3000 psig)
Mounting 2-inch pipe mounting
Wetted parts material Capsule SUS316L(Diaphragm material is Hastelloy C-276),
Hastelloy C-276, Tantalum, Monel
Cover flange SUS316, Hastelloy C-276, Monel
Housing Cast aluminum alloy or SUS316 equivalent stainless steel (optional)
