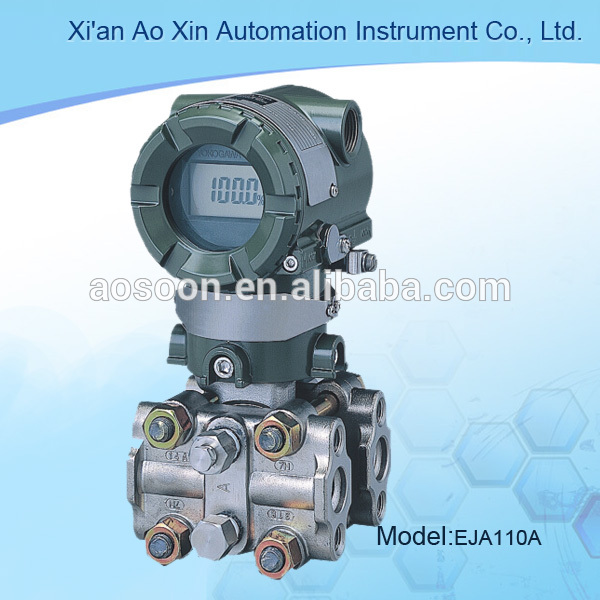

| EJA110A Differential Pressure Transmitter | |||||
| L Capsule | M Capsule | H Capsule | V Capsule | ||
| Range |
-10 to 10 kPa (-40 to 40 inH2O) |
-100 to 100 kPa (-400 to 400 inH2O) |
-500 to 500 kPa (-2000 to 2000 inH2O) |
-0.5 to 14 MPa (-70 to 2000 psi) |
|
| Span |
0.5 to 10 kPa (2 to 40 inH2O) |
1 to 100 kPa (4 to 400 inH2O) |
5 to 500 kPa (20 to 2000 inH2O) |
0.14 to 14 MPa (20 to 2000 psi) |
|
| Accuracy | ±0.075% | ±0.065% | ±0.065% | ±0.065% | |
| Degrees of protection | IP67, NEMA 4X, and JIS C0920 immersion proof | ||||
| Certificates | FM, CENELEC ATEX, CSA, IECEx | ||||
| Output | 4 to 20 mA DC, FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication | ||||
| Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
||||
| Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type) -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
||||
| Process temperature | -40 to 120 deg C (-40 to 248 deg F) (general use type) | ||||
| Maximum working pressure |
16MPa(2300psi) 3.5MPa(500psi) for L capsule with special materials |
||||
| Mounting | 2-inch pipe mounting | ||||
| Wetted parts material | Capsule |
SUS316L(Diaphragm material is Hastelloy C-276), Hastelloy C-276, Tantalum, Monel |
|||
| Cover flange | SUS316, Hastelloy C-276, Monel | ||||
| Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) |
||||
