DWYER MAGNEHELIC DIFFERENTIAL PRESSURE GAGES 2000-00N 0.05-0-0.2＂ in wc Inches of Water

DWYER MAGNEHELIC DIFFERENTIAL PRESSURE GAGES 2000-00N 0.05-0-0.2" in wc Inches of Water

Select the SERIES 2000 Magnehelic® Gage for high accuracy--guaranteed within
2% of full scale--and for the wide choice of 81 models available to suit your needs
precisely. Using Dwyer’s simple, frictionless Magnehelic® gage movement, it quickly indicates low air or non-corrosive gas pressures--either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures.

FEATURES/BENEFITS
• Easy to read gage through undistorted plastic face permits viewing from far away
• Patented design provides quick response to pressure changes means no delay in assessing critical situations
• Durable and rugged housing and high-quality components combine to provide longservice life and minimized down-time

APPLICATIONS
• Filter monitoring
• Air velocity with Dwyer pitot tube
• Blower vacuum monitoring
• Fan pressure indication
• Duct, room or building pressures
• Clean room positive pressure indication

SPECIFICATIONS

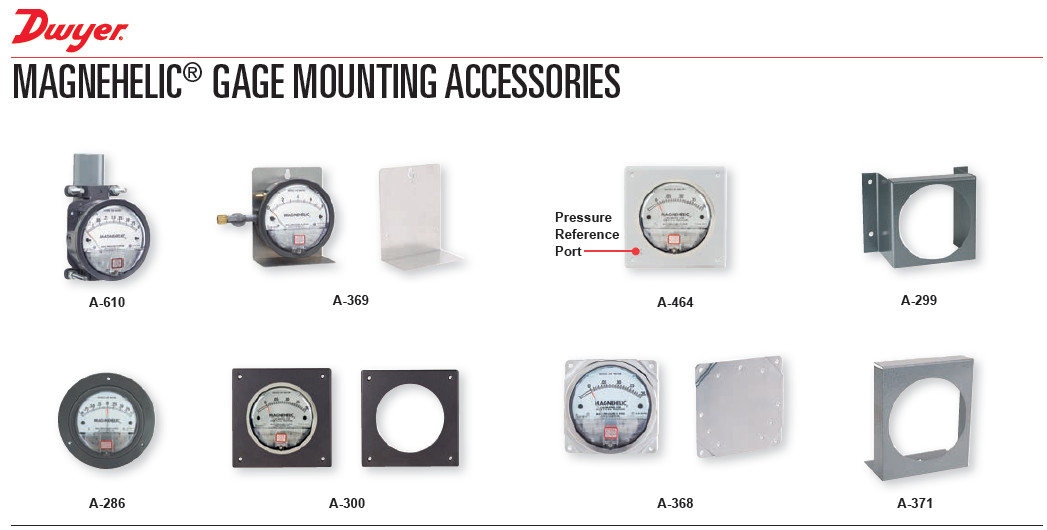

Service: Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi. Wetted Materials: Consult factory. Housing: Die cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168 hour salt spray corrosion test. Accuracy: ±2% of FS (±3% on -0, -100PA, -125PA, -10MM and ±4% on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C). Pressure Limits: -20 in Hg to 15 psig† (-0.677 to 1.034 bar); MP option: 35 psig (2.41 bar); HP option: 80 psig (5.52 bar). Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.u Temperature Limits: 20 to 140°F* (-6.67 to 60°C). -20°F (-28°C) with low temperature option.	Size: 4˝ (101.6 mm) diameter dial face. Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations. Process Connections: 1/8˝ female NPT duplicate high and low pressure taps - one pair side and one pair back. Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g). Standard Accessories: Two 1/8˝ NPT plugs for duplicate pressure taps, two 1/8˝ pipe thread to rubber tubing adapter, and three flush mounting adapters with screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.) Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). Note: -SP models not RoHS approved.
Note: For applications with high cycle rate within gage total pressure rating, next higher rating is recommended. See Medium and High pressure options.
*Low temperature models available as special options.
