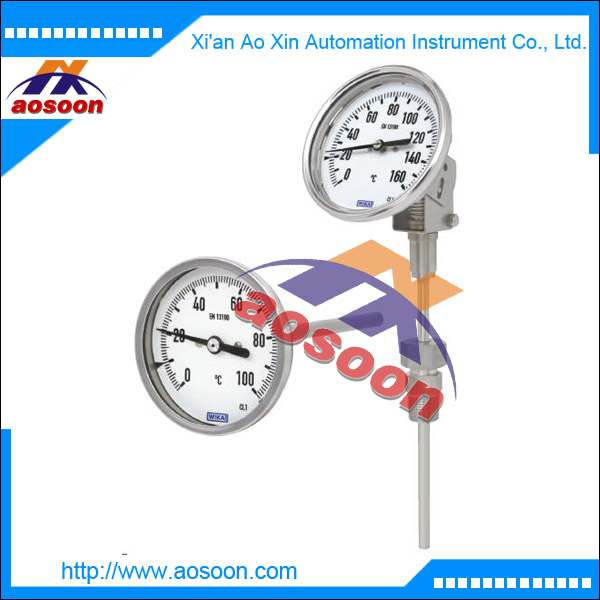

wika Bimetal thermometer wika A5402 wika S5412

Applications
■■ General process instrumentation in the chemical and petrochemical industries, oil and gas industries, energy and water/wastewater industries
■■ Temperature measurement in harsh and aggressive environments
■■ With liquid damping also suitable for applications with high vibrations

Special features
■■ Application range from -70 ... +500 °C
■■ Case and stem from stainless steel
■■ Bimetal with zero point adjustment at the back of the case
■■ Individual stem length from 63 ... 1,000 mm
■■ Germanischer Lloyd approval (option)

Description
The model 54 bimetal thermometer has been developed and is manufactured in accordance with the EN 13190 standard. The thermometer meets the high requirements of the process industries. Especially in the chemical and petrochemical, oil and gas, power engineering and shipbuilding industries, the
temperature measuring instrument manufactured from stainless steel is used successfully. Through the high ingress protection of the thermometer (IP 65) and its liquid damping, operation under high vibration conditions is possible. The model 54 satisfies the high requirements for resistance against aggressive media. As an option, the casing, the stem and the process connection can be made from 316Ti (1.4571).To allow optimum fitting to the process, individual insertion lengths and different process connections can be selected.
