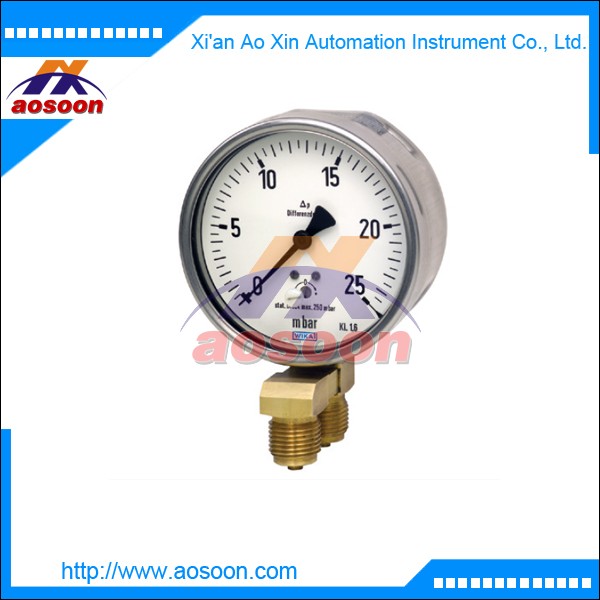

wika Differential pressure gauge with capsule element 716.11 736.11
Applications
■■ Differential pressure measurement at measuring points
with very low differential pressures, for gaseous, dry,
clean, oil and grease free media
■■ Model 736.11 also for aggressive media and environment
■■ Filter monitoring in ventilation and heating systems
■■ Filter monitoring in overpressure and clean rooms
■■ Differential pressure controlled monitoring of ventilator
and blast pressures
Special features
■■ Differential pressure measuring ranges from 0 … 2.5 mbar
■■ As a standard zero adjustment in front
■■ Ingress protection IP 66
■■ Case from stainless steel
Description
Design
For very low differential pressures, DT - GM 87 10 226

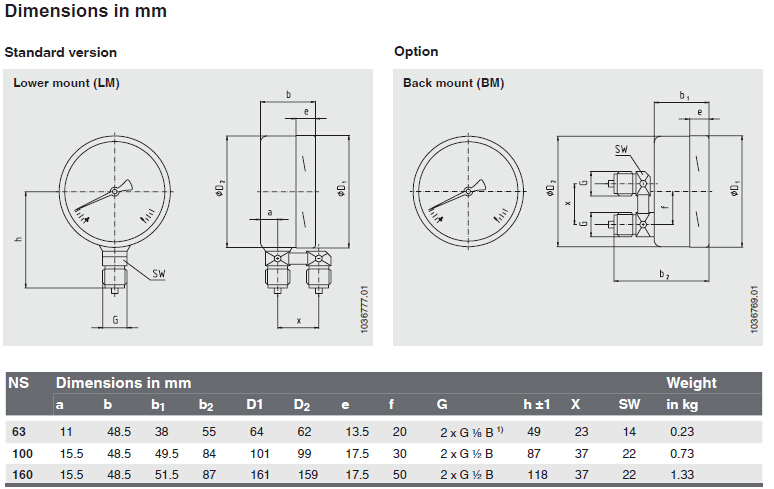

Nominal size in mm
Model 716.11: NS 63, 100, 160
Model 736.11: NS 100, 160
Accuracy class
1.6
Scale ranges
Model 716.11: NS 63: 0 ... 16 to 0 ... 400 mbar
NS 100: 0 ... 10 to 0 ... 250 mbar
NS 160: 0 ... 6 to 0 ... 250 mbar
Model 736.11: NS 100: 0 ... 16 to 0 ... 250 mbar
NS 160: 0 ... 2.5 to 0 ... 250 mbar
or all other equivalent vacuum or combined pressure and
vacuum ranges
Pressure limitation
Steady: Full scale value
Fluctuating: 0.9 x full scale value
Overpressure safety
Full scale value
Max. working pressure (static pressure)
NS 63: 400 mbar
NS 100, 160: 250 mbar
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +70 °C maximum
Temperature effect
When the temperature of the measuring system deviates
from the reference temperature (+20 °C):
max. ±0.5 %/10 K of full scale value
Ingress protection
IP 66 per EN 60529 / lEC 60529
