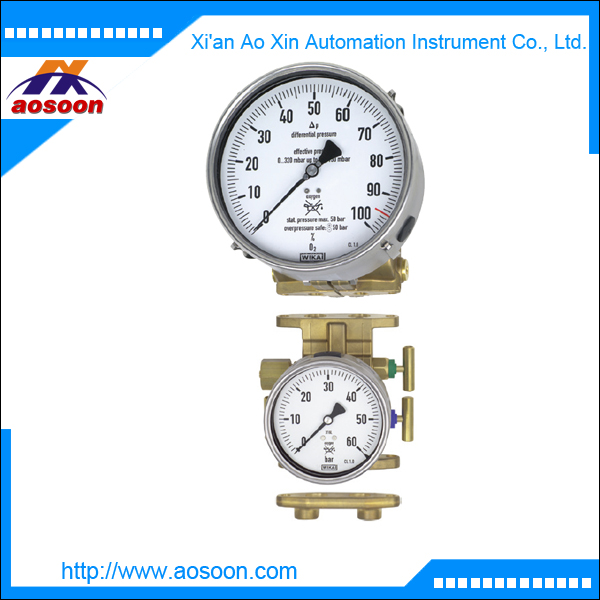

wika Differential pressure gauge wika 712.15.160 wika 732.15.160
Applications
■■ Level measurements in closed tanks, particularly in cryotechnology
■■ Filter monitoring
■■ Monitoring and control of pumps
■■ For gaseous and liquid media that are not highly viscous or crystallising and have no suspended solids
Special features
■■ Differential pressure measuring ranges from 0 … 40 mbar to 0 ... 4,000 mbar
■■ High working pressure (static pressure) of 50 bar
■■ Overpressure safety either side up to 50 bar
■■ Scaleable measuring ranges (maximum Turn Down of 1 : 3.5)
■■ Very compact design
■■ Optionally compact valve manifold with working pressure indication
Description
These high-quality gauges are characterised by their compact and robust design and are primarily used for level
measurement on liquid gas tanks. With only 6 different measuring cells all usual tank sizes in
cryotechnology are covered. As a result of the large measuring range overlap of the respective measuring cells, the
gauge installed on the tank can be adjusted to match a whole variety of gases such as Ar, O2, N2 or CO2, with a full-scale deflection over a complete 270 degree sweep. The span adjustment is accessible from outside and does not affect the
zero point. The mechanical display and the optional electrical output signal are calibrated simultaneously and easily.
An optional valve manifold for flange mounting with working pressure indication makes the central measurement of both
level and working pressure possible in the one instrument.
The level display can be supplied with an optional, integrated 4 … 20 mA, 2-wire transmitter. Switch contacts for level and working pressure, as well as a transmitter for the working pressure can be retrofitted on site. The standard centre distance of 37 mm between the process connections can be adapted to a custom centre distance of 31 mm or 54 mm using adapters for flange mounting.
