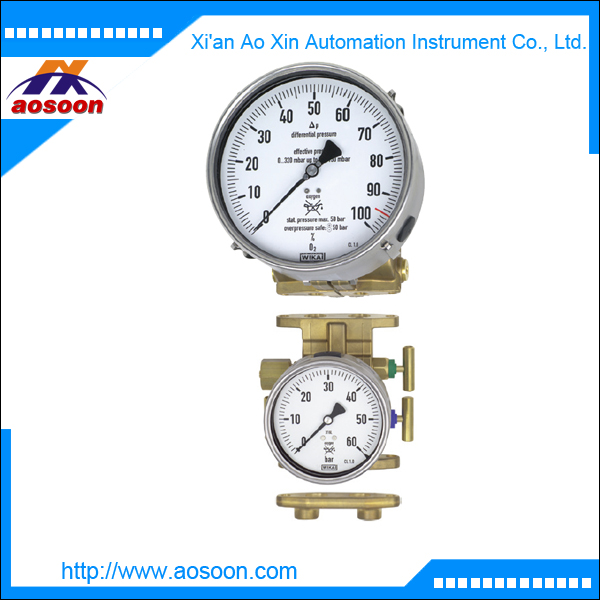

Wika Differential pressure gauge wika 712.15.100 732.15.100

Wika Differential pressure gauge wika 712.15.100 732.15.100

Applications

■■ Level measurements in closed tanks, particularly in cryotechnology

■■ Filter monitoring

■■ Monitoring and control of pumps

■■ For gaseous and liquid media that are not highly viscous or crystallising and have no suspended solids

Special features

■■ Differential pressure measuring ranges from 0 … 40 mbar to 0 ... 1,725 mbar

■■ High working pressure (static pressure) of 50 bar

■■ Overpressure safety either side up to 50 bar

■■ Very compact design

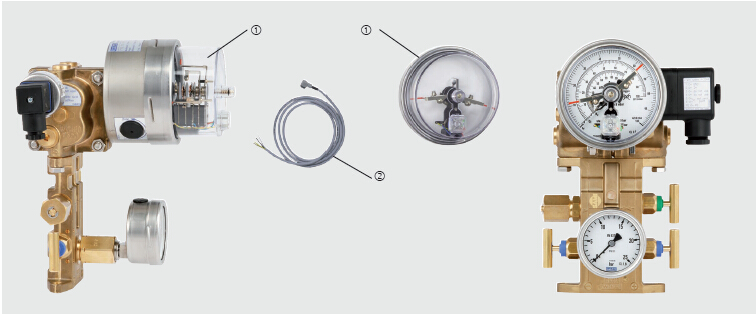

■■ Optionally compact valve manifold with working pressure indication

Description

These high-quality gauges are characterised by their compact and robust design and are primarily used for level

measurement on liquid gas tanks. With 11 different measuring cells all usual tank sizes in cryotechnology are covered. As a result of the large measuring range overlap of the respective measuring cells, the gauge installed on the tank can be adjusted to match a whole variety of gases such as Ar, O2, N2 or CO2, with a full-scale deflection over a complete 270 degree sweep. The span adjustment is accessible from outside and does not affect the zero point. The mechanical display and the optional electrical output signal are calibrated simultaneously and easily. An optional valve manifold for flange mounting with working pressure indication makes the central measurement of both level and working pressure possible in the one instrument.

Wika Differential pressure gauge wika 712.15.100 732.15.100
