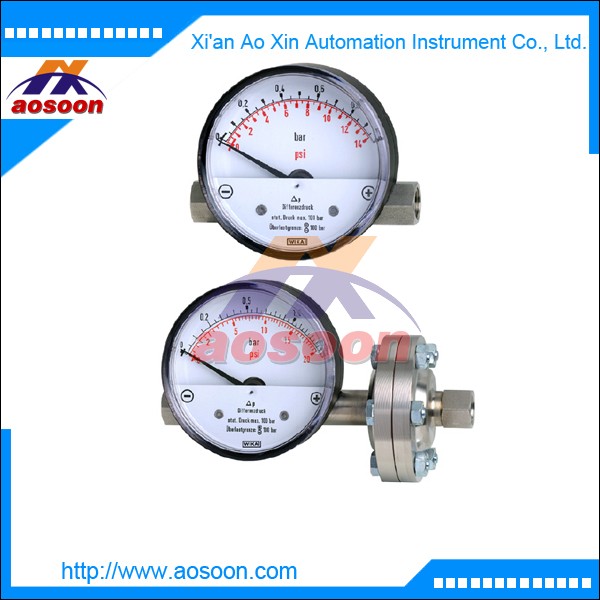

wika Differential Pressure Gauges wika 700.01 With Magnetic Piston wika 700.02

Product Name:*
Name:
E-mail:*
Message:*
wika Differential Pressure Gauges wika 700.01 With Magnetic Piston wika 700.02

Applications
Filter plants
Pump monitoring
Cooling circuits
Pipeline systems

Special Features
Differential pressure measuring ranges
Model 700.01: from 0 ... 400 mbar to 0 ... 10 bar
Model 700.02: from 0 ... 160 mbar to 0 ... 2.5 bar
Sturdy and compact system case made of stainless steel
High working pressures (static pressures), optionally 100, 250 or 400 bar (Model 700.02 to 100 bar max.)

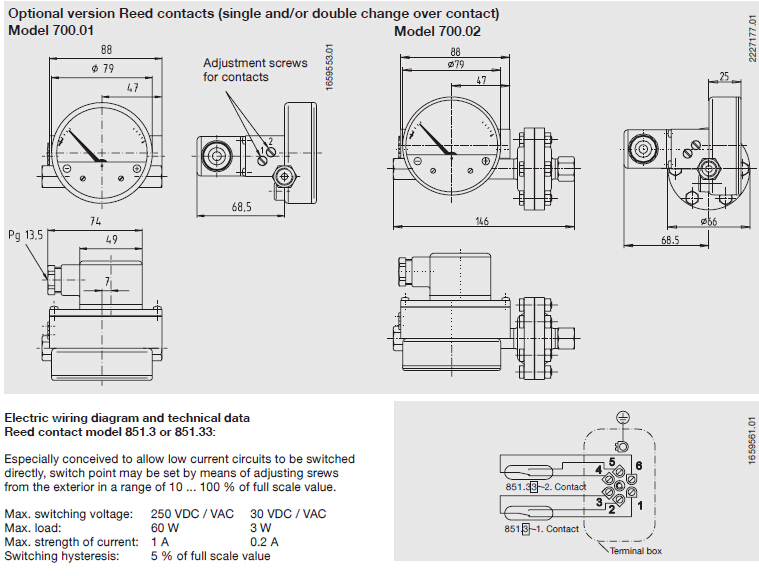

Overpressure safe either side to maximum working pressure (exception for Model 700.02: see table page 2) System and/or case of indication may be changed locally Reed contacts may also be adjusted and retrofitted locally

A front surface mounting flange may be retrofitted on model 700.01. Although these models have a high overload capacity either side up to the maximum working pressure, the weight of the standard versions, i.e. approx. 220 g in the case of model 700.01 and approx. 500 g in the case of model 700.02, is extremely low. Therefore, these gauges provide an economical and flexible solution to your measuring task. This compact design with a measuring system of stainless
steel enables an optimal price/performance ratio.




wika Differential Pressure Gauges wika 700.01 With Magnetic Piston wika 700.02
