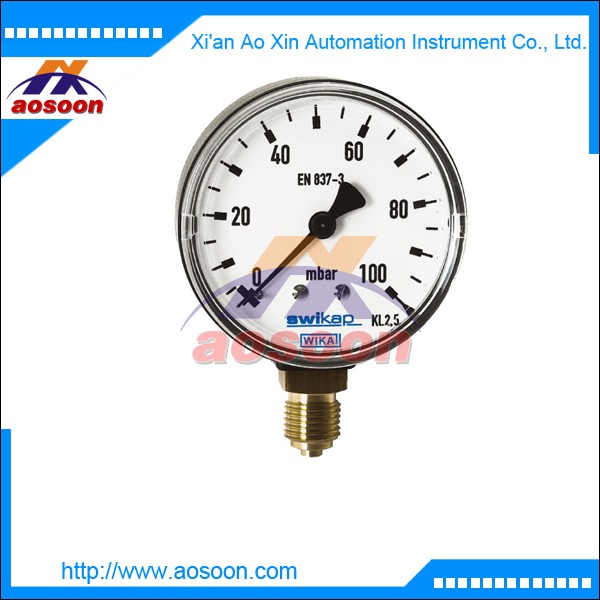

wika Capsule pressure gauge wika Model 611.13 plastic

wika Capsule pressure gauge wika Model 611.13 plastic

Applications

■■ For gaseous, dry and non-aggressive media

■■ Medical, vacuum, environmental, heating technology, for contents measurement and filter monitoring

Special features

■■ Compact design and ingress protection IP 53

■■ Case from plastic

■■ Special connection location on request

■■ Low scale ranges from 0 ... 60 mbar

■■ Maximum scale range 0 ... 1,000 mbar

Description

Design

EN 837-3

Nominal size in mm

50, 63

Accuracy class

2.5

Scale ranges

0 ... 60 mbar to 0 ... 1,000 mbar

or all other equivalent vacuum or combined pressure and

vacuum ranges

Pressure limitation

Steady: Full scale value

Fluctuating: 0.9 x full scale value

Permissible temperature

Ambient: -20 … +60 °C

Medium: +60 °C maximum
