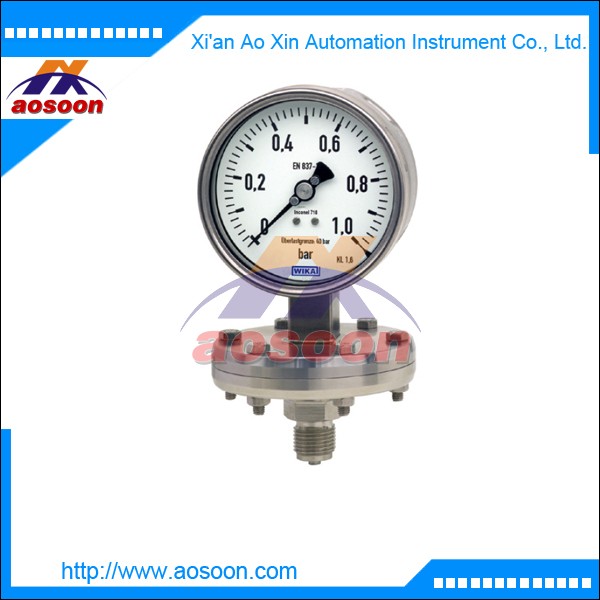

Wika Diaphragm pressure gauge Model 432.56 wika high overpressure safety

Wika Diaphragm pressure gauge Model 432.56 wika high overpressure safety

Applications

■■ For measuring points with increased overpressure

■■ For gaseous, liquid and aggressive media, also in aggressive ambience

■■ With the open connecting flange option also for contaminated and viscous media

■■ Process industry: Chemical, petrochemical, power plants, mining, on- and offshore, environmental technology, machine building and general plant construction

Special features

■■ High overpressure safety, optionally up to 40, 100 or

400 bar, due to metallic diaphragm cushion, without

liquid-filled measuring cell

■■ Wide choice of special materials

■■ Compatible with switch contacts

■■ All stainless steel construction

■■ Scale ranges from 0 … 16 mbar

Description

Design

EN 837-3

Nominal size in mm

100, 160

Accuracy class

1.6

Scale ranges

0 ... 16 mbar to 0 ... 250 mbar (flange Ø 160 mm) 1)

0 ... 400 mbar to 0 ... 40 bar (flange Ø 100 mm) 1)

or all other equivalent vacuum or combined pressure and

vacuum ranges

Pressure limitation

Steady: Full scale value

Fluctuating: 0.9 x full scale value
