Bourdon tube pressure gauge test gauge class 0.6 wika 332.30, 333.30

Bourdon tube pressure gauge test gauge class 0.6 wika 332.30, 333.30

Applications

■■ For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience

■■ Precision measurement in laboratories

■■ High-accuracy pressure measurement, testing of industrial type pressure gauges

■■ Increased safety requirements for personal protection

■■ With liquid-filled case for applications with high dynamic pressure loads or vibrations 1)

Special features

■■ Safety pressure gauge with solid baffle wall designed

in compliance with operational safety requirements of

EN 837-1

■■ All stainless steel construction

■■ Knife edge pointer for optimal accuracy of reading

■■ Wear-resistant precision movement from stainless steel

■■ Scale ranges up to 0 … 1,600 bar

Description

Design

EN 837-1

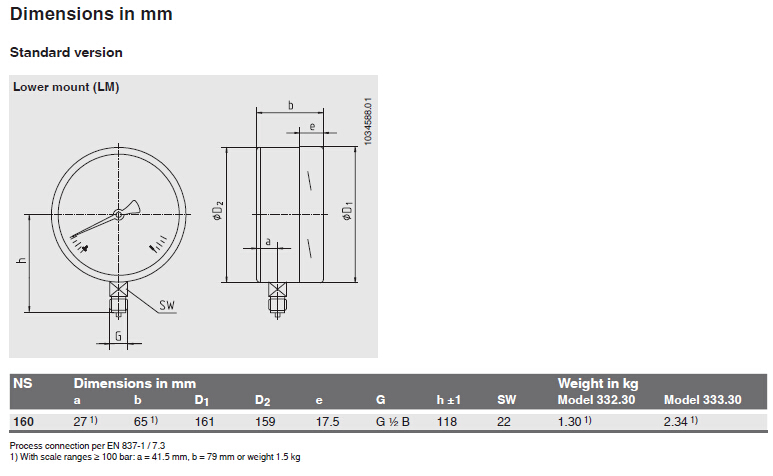

Nominal size in mm

160

Accuracy class

0.6

Scale ranges

0 ... 0.6 to 0 ... 1,600 bar

or all other equivalent vacuum or combined pressure and

vacuum ranges

Adjustment medium

≤ 25 bar: Gas

> 25 bar: Liquid
