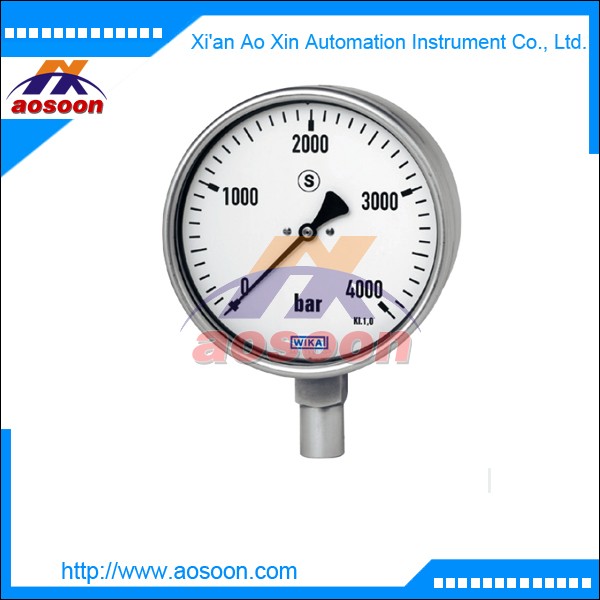

wika Bourdon tube pressure gauge Stainless steel high pressure safety version wika 222.30 223.30

wika Bourdon tube pressure gauge Stainless steel high pressure safety version wika 222.30 223.30

Applications

■■ Increased safety requirements

■■ With liquid-filled case for applications with high dynamic

pressure loads or vibrations 1)

■■ For gaseous and liquid aggressive media that are

not highly viscous or crystallising, also in aggressive

ambience

■■ Process industry: Chemical, petrochemical, power plants,

mining, on- and offshore, environmental technology,

machine building and general plant construction

Special features

■■ Safety pressure gauge with solid baffle wall designed

in compliance with operational safety requirements of

EN 837-1

■■ Excellent load-cycle stability and shock resistance

■■ All stainless steel construction, socket, pressure element

and end piece of Bourdon tube welded

■■ Scale ranges 0 … 2,500 to 0 ... 7,000 bar

Description

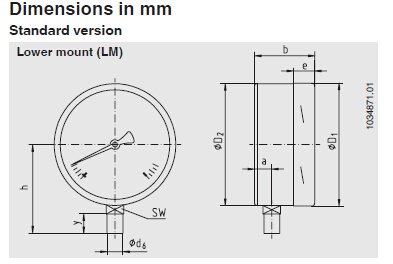

Nominal size in mm

160

Accuracy class

1.0

Scale ranges

0 … 2,500 to 0 ... 7,000 bar

Pressure limitation

Steady: Full scale value

Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -40 ... +60 °C without liquid filling

-20 ... +60 °C with glycerine filling 1)

Medium: +200 °C maximum without liquid filling

+100 °C maximum with liquid filling 1)

Temperature effect

When the temperature of the measuring system deviates

from the reference temperature (+20 °C):

Max. ±0.4 %/10 K of full scale value

Ingress protection

IP 65 per EN 60529 / lEC 529
