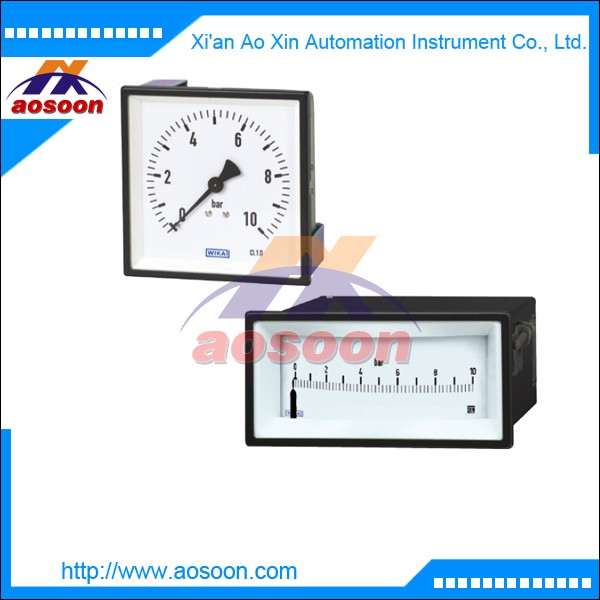

Wika Bourdon tube pressure gauge Edgewise panel design 214.11 wika 234.11

Wika Bourdon tube pressure gauge Edgewise panel design 214.11 wika 234.11

Applications

■■ For gaseous and liquid media that are not highly viscous

or crystallising and will not attack copper alloy parts

■■ Model 214.11: Measuring system Cu-alloy

Model 234.11: Measuring system stainless steel, also for

aggressive media

Special features

■■ Panel mounting

■■ Ingress protection IP 42

Description

Design

DIN 43700

Nominal size in mm

144 x 72, 144 x 144, 96 x 96, 72 x 72

Accuracy class

Class 1.0: NS 144 x 72, 144 x 144, 96 x 96

Class 1.6: NS 72 x 72, 96 x 96

Scale ranges

NS 144 x 72, 144 x 144, 96 x 96: 0 ... 0.6 to 0 ... 1000 bar

NS 72 x 72: 0 ... 0.6 to 0 ... 400 bar

or all other equivalent vacuum or combined pressure and

vacuum ranges

Permissible temperature

Ambient: -20 ... +60 °C

Medium: +60 °C maximum (soft soldered)

+100 °C maximum (brazed)

Pressure limitation

■■ NS 144 x 72, 144 x 144, 96 x 96

Steady: Full scale value

Fluctuating: 0.9 x full scale value

Short time: 1.3 x full scale value

■■ NS 72 x 72

Steady: 3/4 x full scale value

Fluctuating: 2/3 x full scale value

Short time: Full scale value

Temperature effect

When the temperature of the measuring system deviates

from the reference temperature (+20 °C):

max. ±0.4 %/10 K of full scale value

Ingress protection

IP 42 per EN 60529 / lEC 529
