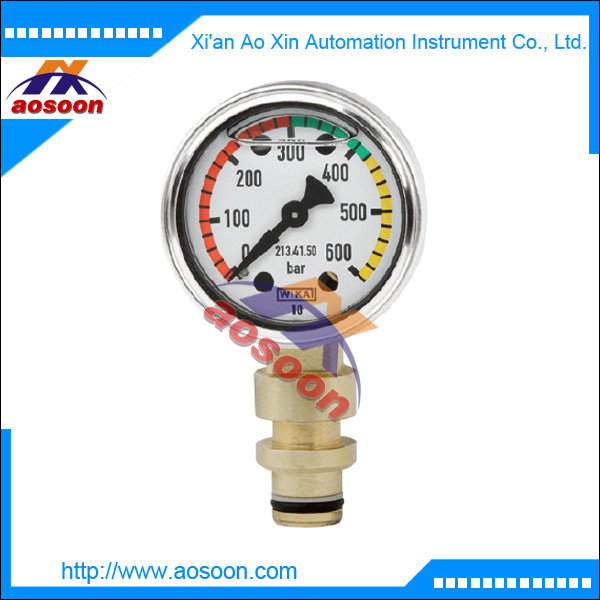

Wika Bourdon tube pressure gauges wika Model 213.41 mining version

Wika Bourdon tube pressure gauges wika Model 213.41 mining version

Applications

■■ For mining equipment and plants (hydraulic roadway

support)

■■ Application with dynamic loads, load cycles, pressure

spikes, vibrations

Special features

■■ Long service life and high indication accuracy

■■ Stable pointer position

■■ Robust design (forged brass case)

■■ No formation of condensation

■■ Dust protection

Description

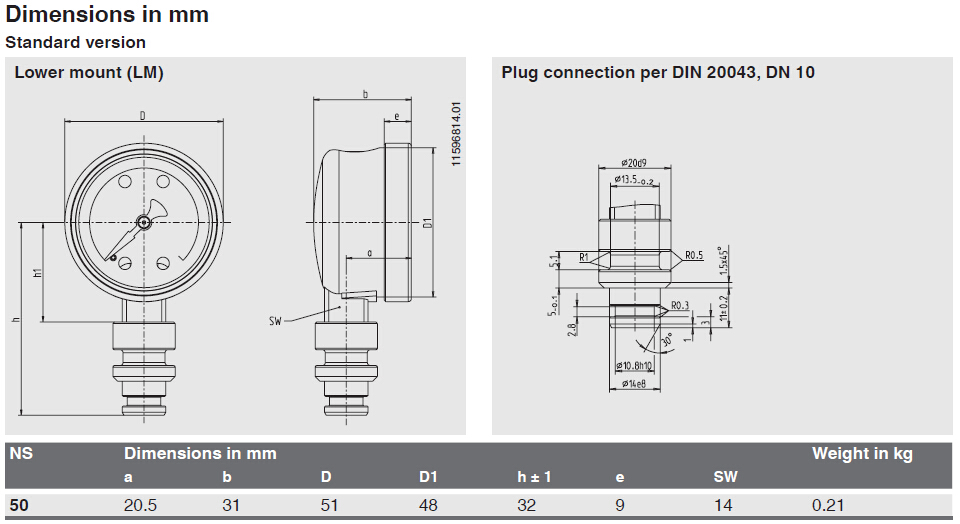

Nominal size in mm

Accuracy class

2.5

Scale range

0 ... 600 bar

Pressure limitation

Steady: 3/4 x full scale value

Fluctuating: 2/3 x full scale value

Short time: full scale value

Operating temperature

Ambient: +10 ... +60 °C

Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates

from the reference temperature (+20 °C):

max. ±0.4 %/10 K of the span
