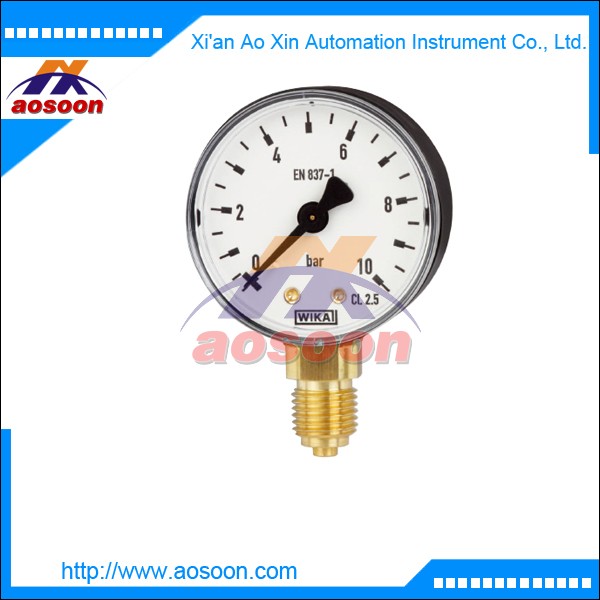

Wika Bourdon tube pressure gauge Lower mount Wika 111.10

Wika Bourdon tube pressure gauge Lower mount Wika 111.10

Applications
■■ For gaseous and liquid media that are not highly viscous
or crystallising and will not attack copper alloy parts
■■ Pneumatics
■■ Heating and air-conditioning technology
■■ Medical engineering
Special features
■■ Reliable and cost-effective
■■ Design per EN 837-1
■■ Nominal size 40, 50, 63, 80, 100 and 160
■■ Scale ranges up to 0 ... 400 bar

Description

Design

EN 837-1

Nominal size in mm

40, 50, 63, 80, 100 and 160

Accuracy class

2.5

Scale ranges

0 ... 0.6 to 0 ... 400 bar (NS 160: max. 40 bar)

or all other equivalent vacuum or combined pressure and

vacuum ranges

Pressure limitation

Steady: 3/4 x full scale value

Fluctuating: 2/3 x full scale value

Short time: Full scale value
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates
from the reference temperature (+20 °C): max. ±0.4 %/10 K
of the span
