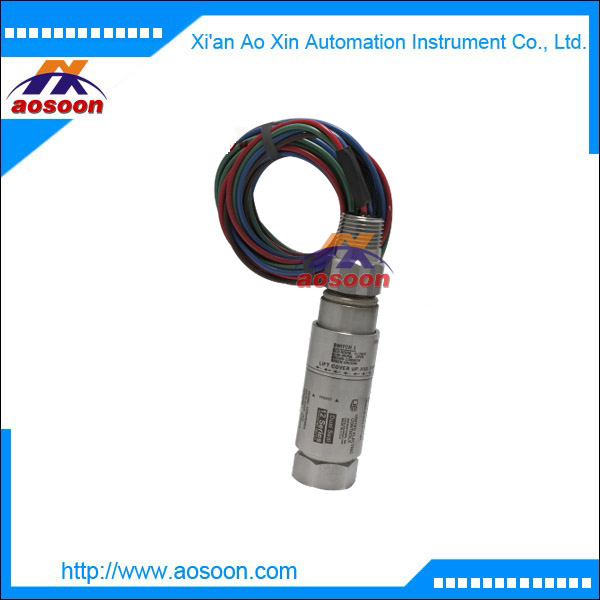

UE 12SHDN2 UE 12SHDN3 UE 12SHDN4 UE 12SHDN5 UE Pressure switch

12 Series Features
UL, cUL and ATEX approved for Div. 1 or Zone 1 hazardous locations, CE compliant
• Dual seal compliant to ANSI/ISA 12.27.01
• Pressure switch wetted parts are NACE MR-0175 compliant
• Snap-acting Belleville spring for long life, vibration resistance and stability
• Optional Hastelloy® and Monel®sensor material for corrosive media
• Optional medium-pressure and high-pressure autoclave pressure connections
• Mounting bracket available for retrofit applications
• 72" leadwires
• 3-year warranty

Applications
Triple approval (UL, cUL and ATEX) mean the 12 Series meets the demanding requirements of critical applications within hazardous locations. Additionally, the 12 Series complies with ANSI/ISA 12.27.01, "secondary seal requirements for process sealing between electrical systems and f lammable or combustible process fluids." It can be used in a variety of applications where space is at a premium. All metal wetted parts comply with NACE MR-0175 and the 316 stainless steel,
type 4X enclosure rating assure long-term performance in the harshest environments.

Technology
At the heart of the 12 Series is a Belleville spring assembly. The spring is a small conical washer that transfers motion to a hermetically sealed 1 or 5 amp microswitch. Its ‘snap-action’ provides fast, positive contact transfer. The Belleville spring ‘snaps over’ when pressure is applied and ‘snaps back’ upon pressure release.
Weight Temperature models: approximately 1 lb 14 oz. (0,85 kg)
Pressure models: approximately 12 ounces (0,34 kg)
Differential models: approximately 3 lb (1,4 kg)
Temperature Assembly Non-toxic oil fill; 6 feet 304 stainless steel. Optional lengths available
Temperature deadband Typically 2% of range under laboratory conditions
(70°F ambient circulating bath at a rate of 1/2°F per minute change)
Pressure Connection 1/2" NPT (female) or 1/4" NPT (female).
Differential pressure: 1/8" NPT (female)
Optional pressure connections available, see page 11.
MOUNTING Pressure: May be pipe mounted or bracket mounted using kit 62169-13
Differential Pressure: Should be mounted using 2 mounting holes on sensor bracket
Temperature: Mounting kit 62169-13 should be specified for new installations
UE 12SLSN2 UE 12SLSN3 UE 12SLSN4 UE 12SLSN5 UE 12SLSN6 UE 12SLSN7 UE 12SLSN8 UE 12SLSN9 UE 12SLSNP
UE 12SLDN2 UE 12SLDN3 UE 12SLDN4 UE 12SLDN5 UE 12SLDN6 UE 12SLDN7 UE 12SLDN8 UE 12SLDN9 UE 12SLDNP
UE 12SLDM2 UE 12SLDM3 UE 12SLDM4 UE 12SLDM5 UE 12SLDM6 UE 12SLDM7 UE 12SLDM8 UE 12SLDM9 UE 12SLDMP
UE 12SLSM2 UE 12SLSM3 UE 12SLSM4 UE 12SLSM5 UE 12SLSM6 UE 12SLSM7 UE 12SLSM8 UE 12SLSM9 UE 12SLSMP
UE 12SHSN2 UE 12SHSN3 UE 12SHSN4 UE 12SHSN5 UE 12SHSN6 UE 12SHSN7 UE 12SHSN8 UE 12SHSN9 UE 12SHSNP
UE 12SHSM2 UE 12SHSM3 UE 12SHSM4 UE 12SHSM5 UE 12SHSM6 UE 12SHSM7 UE 12SHSM8 UE 12SHSM9 UE 12SHSMP
UE 12SHDN2 UE 12SHDN3 UE 12SHDN4 UE 12SHDN5 UE 12SHDN6 UE 12SHDN7 UE 12SHDN8 UE 12SHDN9 UE 12SHDNP
UE 12SHDM2 UE 12SHDM3 UE 12SHDM4 UE 12SHDM5 UE 12SHDM6 UE 12SHDM7 UE 12SHDM8 UE 12SHDM9 UE 12SHDMP
UE 12SHDN2 UE 12SHDN3 UE 12SHDN4 UE 12SHDN5 UE Pressure switch
