UE 10-B11--M201 UE 10-B12-M201 UE 10-B13-M201 UE 10-B14-M20

Product Name：*
Name：
E-mail：*
Message：*
UE 10-B11--M201 UE 10-B12-M201 UE 10-B13-M201 UE 10-B14-M20

UE Features
• cULus recognized, CE compliant to low voltage directive and pressure equipment directive
• Optional ATEX intrinsic safety compliance
• NPT or SAE threaded pressure connections
• Choice of 7 electrical terminations
• Optional leadwire/cable lengths
• Rugged and vibration resistant
• Proof pressures up to 12,000 psi (827 bar)

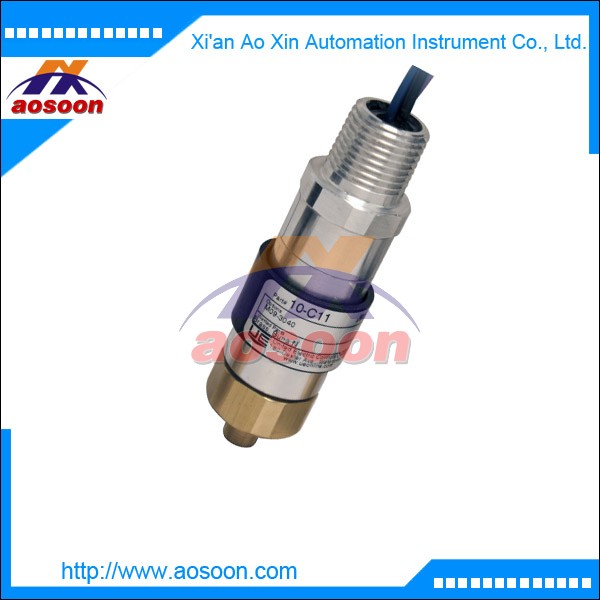

UE 10 Series overview
Available with seven electrical termination varieties, a choice of sensors, and several pressure connections, the 10 Series is designed to meet most requirements for a variety of OEM and industrial applications. Just 1-1/4 inches in diameter and as small as 3 inches high, this compact, cylindrical switch mounts wherever space is at a premium. A reliable and cost-effective switch, the 10 Series is ideal for applications with high settings and surges. Among the tough applications in which the product has proven itself are: mobile hydraulic units, compactors, balers and lube oil systems. In addition to standard capabilities, modified designs or options are available to help you meet specific application requirements. Design flexibility allows for customized pressure connections, electrical terminations and pressure ranges. Consult UE for all product capabilities, order restrictions and special conditions.

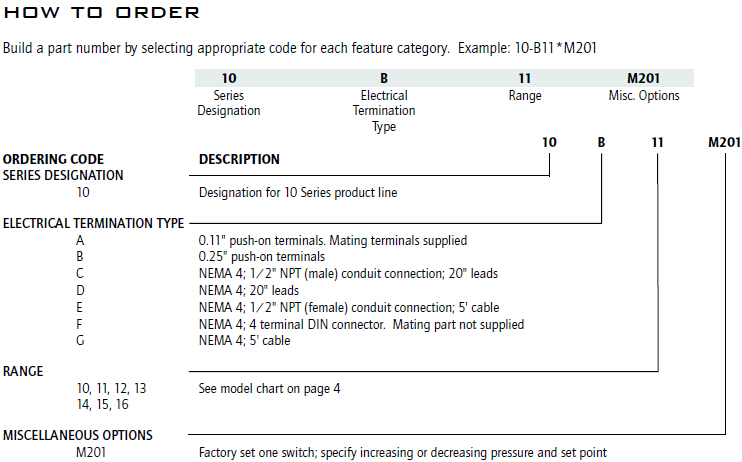

UE 10-A10-M201 UE 10-A11--M201 UE 10-A12-M201 UE 10-A13-M201 UE 10-A14-M201 UE 10-A15-M201 UE 10-A16-M201 UE 10-A17-M201
UE 10-B10-M201 UE 10-B11--M201 UE 10-B12-M201 UE 10-B13-M201 UE 10-B14-M20 UE 10-B15-M201 UE 10-B16-M201 UE 10-A17-M201
UE 10-C10-M201 UE 10-C11--M201 UE 10-C12-M201 UE 10-C13-M201 UE 10-C14-M201 UE 10-C15-M201 UE 10-C16-M201 UE 10-A17-M201
UE 10-D10-M201 UE 10-C11--M201 UE 10-D12-M201 UE 10-D13-M201 UE 10-D14-M201 UE 10-D15-M201 UE 10-D16-M201 UE 10-A17-M201
UE 10-E10-M201 UE 10-D11--M201 UE 10-E12-M201 UE 10-E13-M201 UE 10-E14-M201 UE 10-E15-M201 UE 10-E16-M201 UE 10-A17-M201
UE 10-F10-M201 UE 10-E11--M201 UE 10-F12-M201 UE 10-F13-M201 UE 10-F14-M201 UE 10-F15-M201 UE 10-F-16-M201 UE 10-A17-M201
UE 10-G10-M201 UE 10-F11--M201 UE 10-G12-M201 UE 10-G13-M201 UE 10-G14-M201 UE 10-G15-M201 UE 10-G16-M201 UE 10-A17-M201


UE 10-B11--M201 UE 10-B12-M201 UE 10-B13-M201 UE 10-B14-M20
