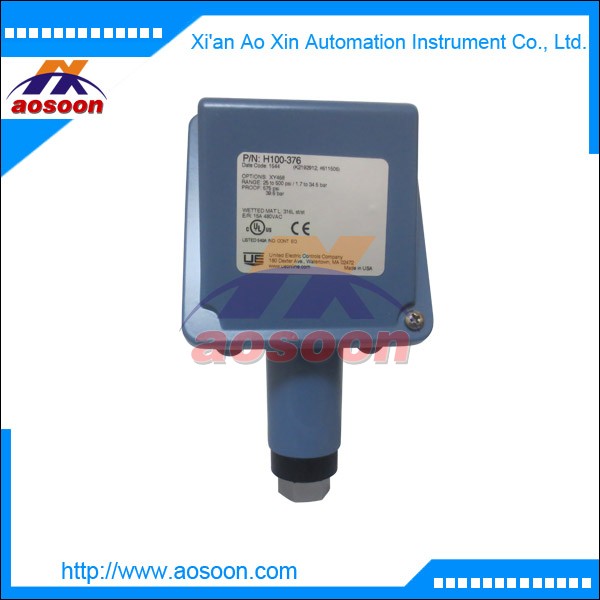

UE H100-376 PRESSURE SWITCH STOCK UE SWITCH

UE H100-376 PRESSURE SWITCH STOCK UE SWITCH

UE pressure switch general introduction

The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.

M201 Factory set one switch; specify increasing or decreasing pressure or temperature and setpoint
M277 Range indicated on nameplate in kPa or MPa, factory selected. Not available on temperature versions
M278 Range indicated on nameplate in Kg/cm2. Not available on temperature versions
M405 Intrinsic safety compliance for European Union per ATEX standards
M406 Intrinsic Safety compliance for Russia per Gosgortechnadzor standards.
M444 Paper ID tag
M446 Stainless steel ID tag & wire attachment
M449 Mounting bracket kit. Required for models 520-535, 15737 when surface mounting. Use kit part number

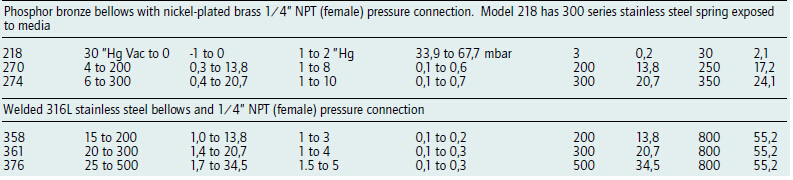

Storage temperature	-65 to 160°F (-54 to 71°C)
Ambient temperature limits	-40 to 160°F (-40 to 71°C); models 520-525, 540-548, 700-706, 15731-15736: 0 to 160°F (-18 to 71°C); Set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change
Set point repeatability	Temperature models: ± 1% of adjustable range Pressure models 15623, 15731-15737, 171-174, 218, 270-376, 520-535, 540-543, 700- 706, 560-564: ± 1% of adjustable range; models 190-194, 183-189, 483-494, 544-548, 565-567, 610-680, 15884: ±1.5% of adjustable range Internal set point lock on all pressure models
Shock	Set point repeats after 15 G, 10 millisecond duration
Vibration	Set point repeats after 2.5 G, 5-500 Hz
Enclosure	Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Enclosure classification	Enclosure type 4X
Switch output	One SPDT snap action switch; switch may be wired “normally open” or “normally closed”
Electrical rating	15A 125/250/480 VAC resistive except for H100-15623, 15731-15737, 15884, 20A 125/250/480 VAC resistive, B100-13546 and E100-13545, 22A/480 VAC. Electrical switches have limited DC capabilities at 24-30 VDC, 2A resistive and 1A inductive. 125 VDC, 0.5A resistive, 0.03A inductive. Consult factory for additional information.
Weight	2-7 lbs; Varies with model
Electrical connection	1/2” NPT (female); Two 7/8” diameter knockouts
