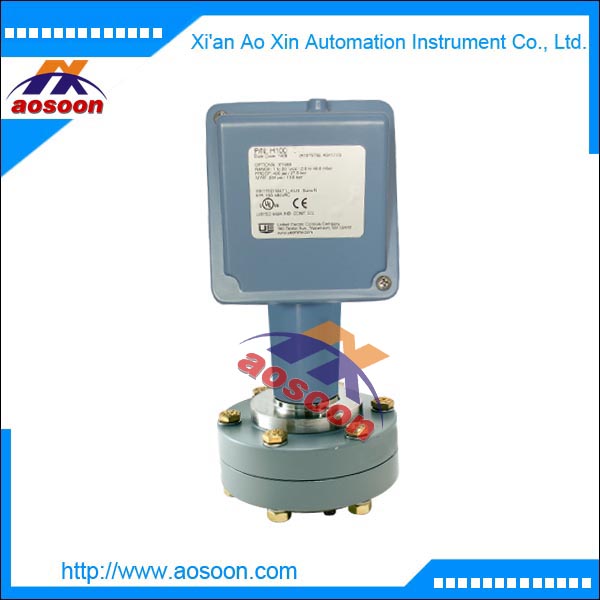

UE H100-184 pressure switch general introduction
The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
Features:
UL listed and cUL certified
CE compliant to low voltage directive and pressure equipment directive
Optional ATEX or GOST intrinsic safety compliance
Single switch (SPDT or DPDT) output
Welded stainless steel diaphragm models
Ultra low pressure, “wc models
Optional sensor material for corrosive media
Polished stainless steel flush-mount connection
Pump switch models with wide adjustable dead band
switch options*
0140 Gold contacts, 1A 125 VAC resistive. Not available models 13545, 13546, 15623, 15731-15884
0500 Close deadband, 5A 125/250 VAC resistive. Not available models 520-535, 13545, 13546, 15623,
15731-15884
1010 DPDT switch, 10A 125/250 VAC resistive; deadband and minimum set point will increase. Not available temperature versions , type H100K or models 171-194, 483-567, 680, 15623, and 15731-15884
1070 10 A 125 VDC resistive; deadband and minimum set point will increase. Not available models 171-
194, 483-535, 560-567, 13545, 13546, 15623, 15731-15884
1519 Adjustable deadband, 15 A 125/250/480 VAC resistive; adjustment wheel changes rise setting only. If adjustment on fall setting is required, use primary adjustment. Not available types B100, E100 or
models 171-194, 483-494, 560-567, 610-616, 51623, 15731-15884
1530 External manual reset, 15 A 125/250/480 VAC resistive; latches on rise, only. Not available models
13545, 13546, 15623, 15731-15884
1535 High ambient, 15 A 125/250 VAC resistive; temperatures up to 250°F (121.1°C). NOT AVAILABLE
MODELS 520-535, 13545, 13546, 15623, 15731-15884
1537 Vapor sealed switch, 15 A 125/250 VAC resistive. NOT AVAILABLE MODELS 523, 533, 13545, 13546, 15623, 15731-15884
2000 20 A 125/250/480 VAC resistive. Not available type H100K or models 520-535, 13545, 13546,
15623, 15731-15884
3000 30 A 125/250/277 VAC resistive. Not available type H100K or models 171-194, 483-567, 680,
13545, 13546, 15623, 15731-15884
