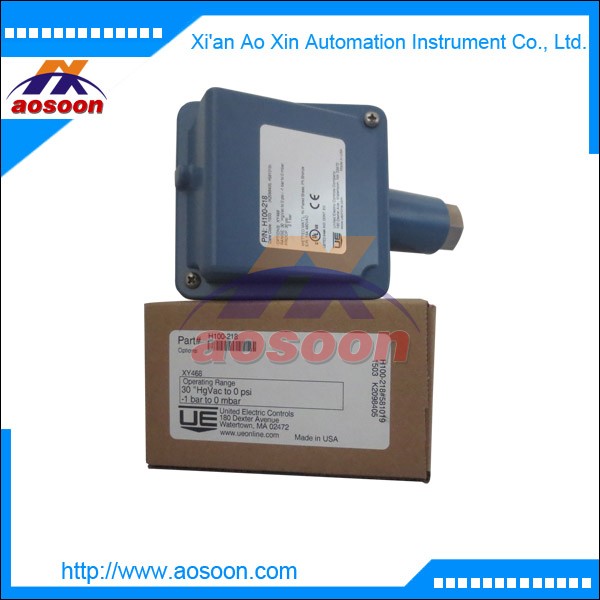

UE H100-15735 pressure switch general introduction
The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
options
M020 Red status light, 115 VAC only. Not available models 13545, 13546, 15623, 15731-15884
M201 Factory set one switch; specify increasing or decreasing pressure or temperature and setpoint
M277 Range indicated on nameplate in kPa or MPa, factory selected. Not available on temperature versions
M278 Range indicated on nameplate in Kg/cm2. Not available on temperature versions
M405 Intrinsic safety compliance for European Union per ATEX standards
M406 Intrinsic Safety compliance for Russia per Gosgortechnadzor standards.
M444 Paper ID tag
M446 Stainless steel ID tag & wire attachment
M449 Mounting bracket kit. Required for models 520-535, 15737 when surface mounting. Use kit part number
6361-704 for other models
M504 316L stainless steel immersion stem. Available temperature models 120, 121 only
M540 Viton® construction (deadband and low end range may increase slightly); wetted parts include Viton®
diaphragm and O-ring plus stainless steel pressure connection. AVAILABLE on models 610-616 (O-ring only),
701-705 (Viton diaphragm & O-ring, stainless steel pressure connection), AND 540-548 (sealing diaphragms
only, main diaphragm remains Kapton®, pressure connections remain aluminum)
M550 Oxygen service cleaning; internal construction may change. NOT AVAILABLE ON PRESSURE MODEL 706
M914 1/2” NPT (female) stainless steel pressure connection. AVAILABLE MODELS 358-376, 610-616
M921 Brass pressure connection. AVAILABLE MODELS 610-616
6361-704 Surface and Pipe Mounting Hardware (required for model 520-535, 15737, 540-548 when surface mounting)
SD6286-51 Watertight conduit fitting; connects 7/8” hole to 1/2” NPT (female) fitting
ALSO AVAILABLE : UE Final Inspection Reports, Certified Drawings, and other Certificates are available. Please consult your UE representative for additional information.
