UE PRESSURE SWITCH UE PRESSURE SWITCH H100-15733

UE PRESSURE SWITCH UE PRESSURE SWITCH H100-15733

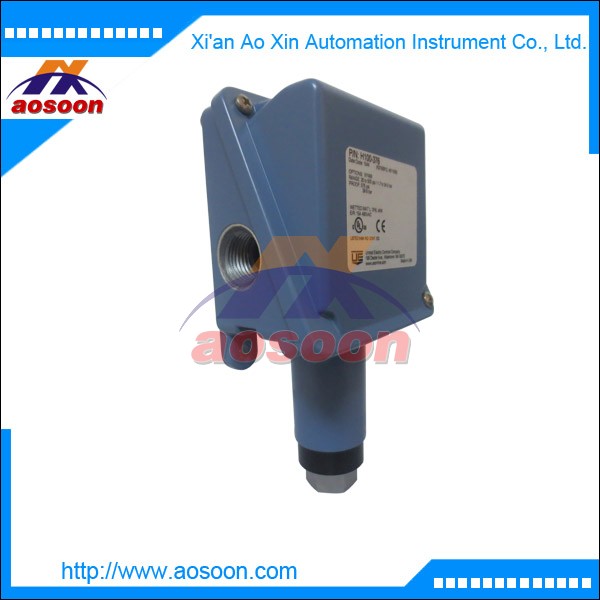

UE pressure switch general introduction

The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.

How to order
Select a Type Refer to the “Type” section below. Determine type number based on switch output, enclosure, adjustment and reference.

Select a Model

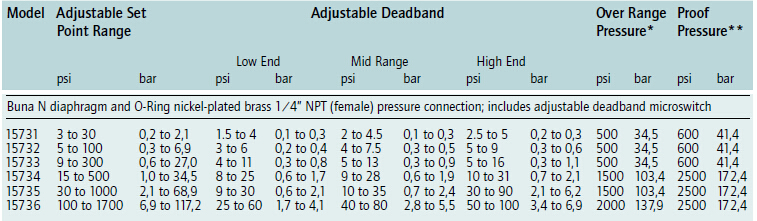

Refer to the “Model Charts” Determine model based on adjustable range, deadband and proof pressure. Fill in the model portion of your part number with the corresponding number.

Select an Option
Refer to the “Options” section Determine option number based on switch output, optional materials or other product enhancements. Fill in the option portion of your part number with the corresponding number. Leave “option” portion blank if no options are needed. FOR MULTIPLE OPTIONS: Call United Electric Controls.
