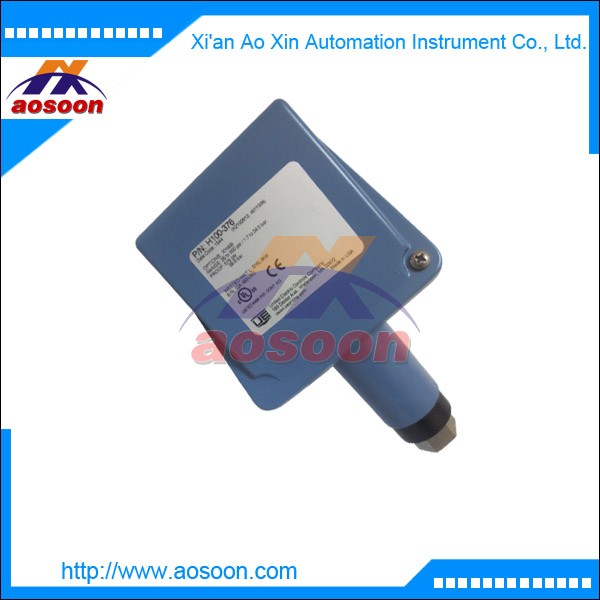

USA UE AGENT UE PRESSURE SWITCH H100-15732

USA UE AGENT UE PRESSURE SWITCH H100-15732

Features:
UL listed and cUL certified
CE compliant to low voltage directive and pressure equipment directive
Optional ATEX or GOST intrinsic safety compliance
Single switch (SPDT or DPDT) output
Welded stainless steel diaphragm models
Ultra low pressure, “wc models
Optional sensor material for corrosive media
Polished stainless steel flush-mount connection
Pump switch models with wide adjustable dead band

The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
