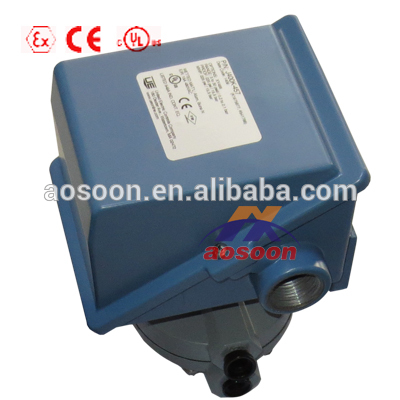

UE J400-520 UE Pressure Switch Buna-N diaphragm

UE J400-520 Buna-N diaphragm   UE Pressure  Switch original USA made
(certificate of origin can be provided)  sold to Vietnam Indonesia Iran

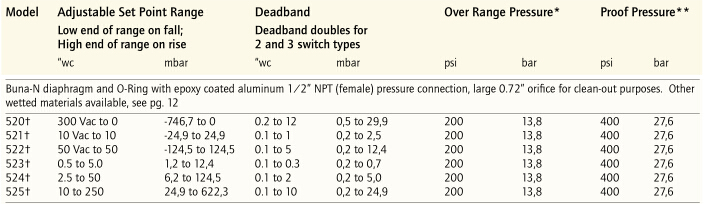

“wc range: 300 “wc Vac to 250 “wc (-746,7 to 622, 3 mbar)
Pressure: 30”Hg Vac to 6000 psi (-1 to 413,7 bar)
deadband and manual reset switches
• SPDT & DPDT hermetically sealed switches
• Optional immersion stem and capillary lengths for temperature switches
Wide Selection of Pressure Sensors for media compatibility,
optimum sensitivity and set point repeatability, covering ranges
from Vacuum to 6,000 psi (413,7 bar)
• Welded 316 stainless steel diaphragms or bellows
• Teflon, Buna N, Kapton, or Viton diaphragms
• Hastelloy or Monel diaphragms
• 316L stainless steel sanitary diaphragms
• 303 stainless steel pistons for high pressure
Industries & Applications
• Chemical plants
• Pipelines and refineries
• Coal and grain dust areas
• Gas purge lines
• Buffer gas systems
• Tank blanketing
• Pumps, compressors and turbines
