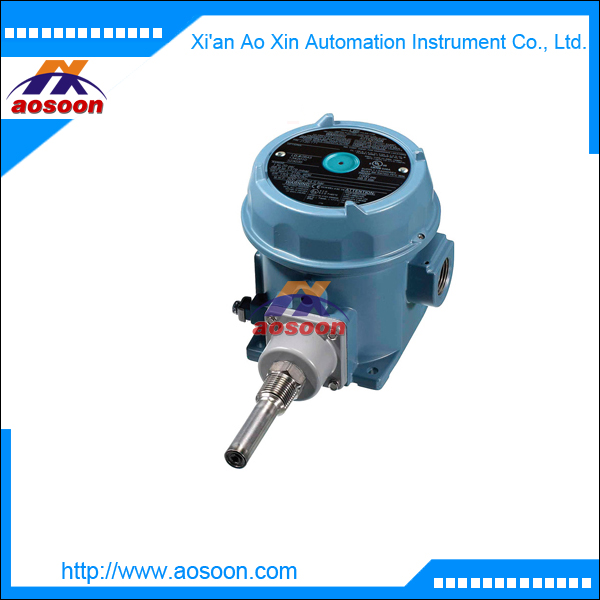

UE B100-120 temperature switch UE insertion type switch

UE B100-120 temperature switch UE insertion type switch

UE B100-120  how to order
Select a Type
Refer to the “Type” section below.
Determine type number based on switch
output, enclosure, adjustment and reference.

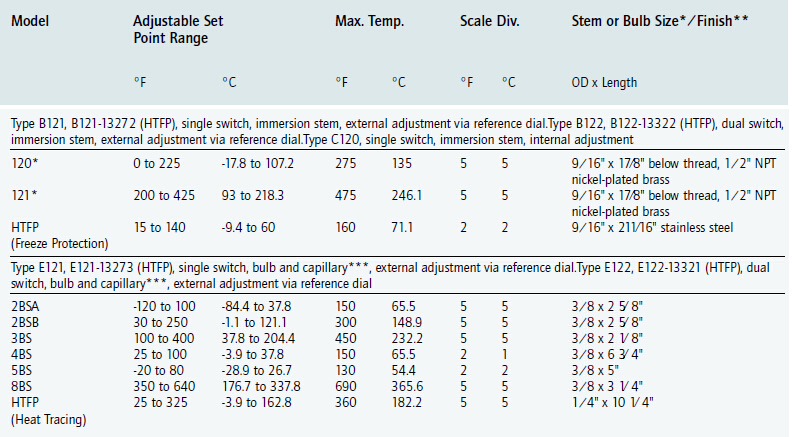

Select a Model
Refer to the “Model Charts”
Determine model based on adjustable
range, deadband and proof pressure.
Fill in the model portion of your part number
with the corresponding number.

Select an Option
Refer to the “Options” section
Determine option number based on switch
output, optional materials or other product
enhancements.
Fill in the option portion of your part number
with the corresponding number.
Leave “option” portion blank if no options
are needed. FOR MULTIPLE OPTIONS: Call
United Electric Controls.

UE J120 temperature switch Commonly used model

UE B121-120	UE B121-121	UE C120-120	UE C120-121	UE E121-2BSA
UE E121-2BSB	UE E121-3BS	UE E121-4BS	UE E121-5BS	UE E121-8BS
UE F120-1BS	UE F120-2BS	UE F120-3BS	UE F120-4BS	UE F120-5BS
UE F120-6BS	UE F120-7BS	UE F120-8BS	UE 820E-1BS	UE 820E-2BS
UE 820E-3BS	UE 820E-4BS	UE 820E-5BS	UE 820E-6BS	UE 820E-7BS
UE 820E-8BS	UE 822E-1BS	UE 822E-2BS	UE 822E-3BS	UE 822E-4BS
UE 822E-5BS	UE 822E-6BS	UE 822E-7BS	UE 822E-8BS
