UE F100-6BS UE temperatur eswitch UE 7BS-M201-W050

UE F100-6BS UE temperatur eswitch UE 7BS-M201-W050

UE F100-6BS UEF100-7BS temperature switch general introduction:
Temperature Type B100 - Immersion stem; one SPDT output; internal adjustment with reference dial
Type C100 - Immersion stem; one SPDT output; internal adjustment with no reference
Type E100 - Bulb and capillary; one SPDT output; internal adjustment with reference dial

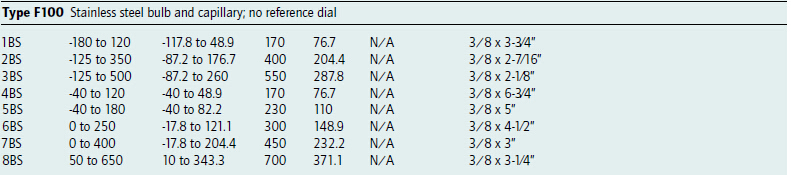

Type F100 - Bulb and capillary; one SPDT output; internal adjustment with no reference

Option Replacement Number Description

Brass
W027 SD6213-27 1⁄2” NPT w/ 3⁄” bushing
W045 SD6213-45 3⁄” NPT
W051 SD6213-51 1⁄” NPT
304 Stainless Steel
W028 SD6213-28 1⁄” NPT w/ 3⁄” bushing
W046 SD6213-46 3⁄” NPT
W050 SD6213-50 1⁄” NPT

The 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged
weather-proof mechanical switch. Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.

Option Replacement Number Description
