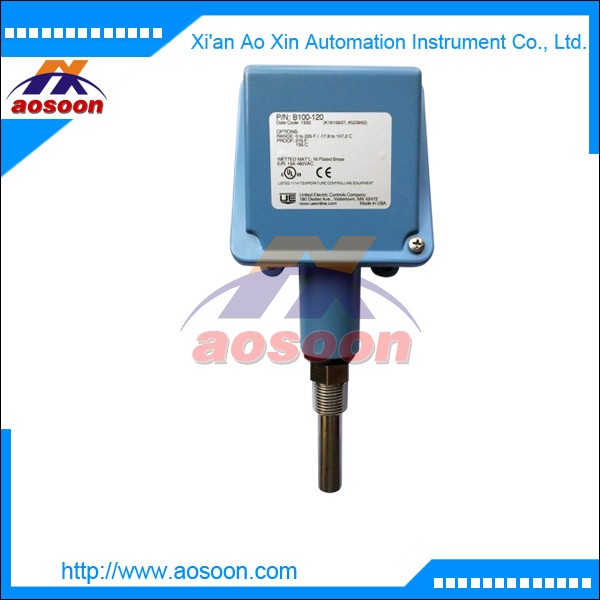

UE C100-120 temperature switch USA UE switch

UE C100-120 general introduction:
Temperature Type B100 - Immersion stem; one SPDT output; internal adjustment with reference dial
Type C100 - Immersion stem; one SPDT output; internal adjustment with no reference
Type E100 - Bulb and capillary; one SPDT output; internal adjustment with reference dial
Type F100 - Bulb and capillary; one SPDT output; internal adjustment with no reference



Switch output One SPDT snap action switch; switch may be wired “normally open” or “normally closed”
Electrical rating 15A 125/250/480 VAC resistive except for H100-15623, 15731-15737, 15884, 20A
125/250/480 VAC resistive, B100-13546 and E100-13545, 22A/480 VAC. Electrical
switches have limited DC capabilities at 24-30 VDC, 2A resistive and 1A inductive. 125
VDC, 0.5A resistive, 0.03A inductive. Consult factory for additional information.
Weight 2-7 lbs; Varies with model
Electrical connection 1/2” NPT (female); Two 7/8” diameter knockouts
