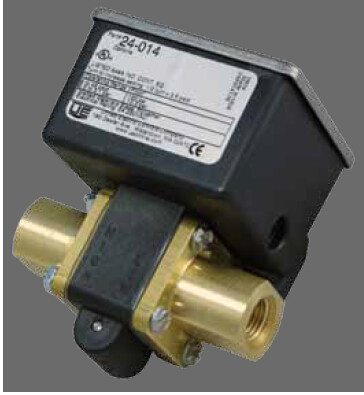

UE J24-014 UE Differential pressure switch UE Differential pressure controller

UE J24-014 UE Differential pressure switch UE Differential pressure controller

Features
• Brass & Polysulfone (FDA compliant) Pressure Connections
• Compact Size
• Complies with Enclosure Type 4 with watertight conduit fitting
• Terminal block wiring
• Optional red status light

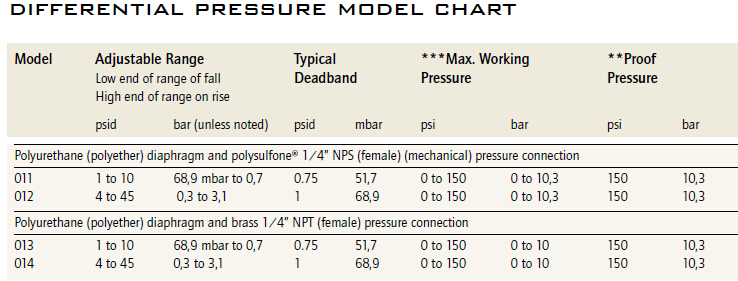

• Adjustable Ranges:
Pressure: 30" Hg Vac to 90 psi (-1 to 6,2 bar)
Differential Pressure: 1 to 45 psid (68,9 mbar to 3,1 bar)

Technology
The 24 Series (Delta Pro™) was designed to be a compact, cost-effective differential pressure switch for applications such as proof-of-flow, filter monitoring, etc. It depends upon two opposing diaphragms to sense pressure on the "High" and "Low" pressure outputs of a system. The resulting pressure differential is transmitted through a linkage to a snap-action electrical switch, providing an output when a pre-set difference is exceeded. This set point can be easily modified while under pressure via an external adjusting screw. This adjustment "pre-loads" the actuation mechanism, which results in excellent vibration-resistance. Straight pressure and vacuum versions, with a single diaphragm, are also available.
