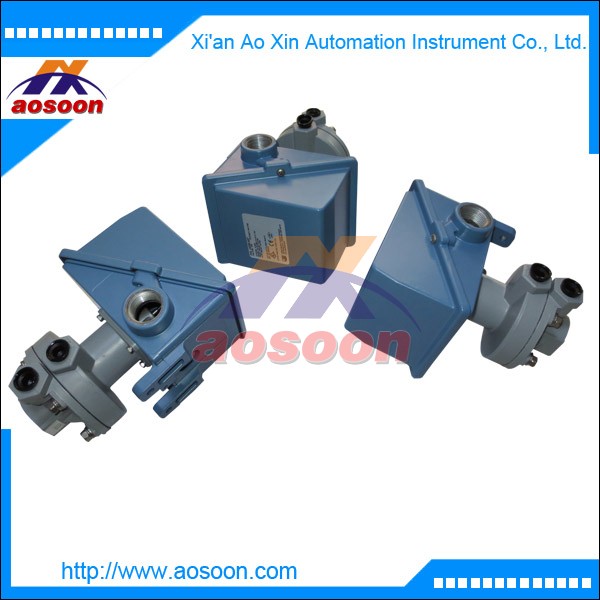

USA UE differential pressure switch UE J400K-455 J402K-455

USA UE differential pressure switch UE J400K-455 J402K-455

United electric controls UE 400 Overview
The 400 Series is a versatile family of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities. Dual and triple switch versions provide multi-output for alarm and shutdown, pre-alarm and alarm, high/low limit or level staging functions. A wide variety of microswitch and process connection options, along with a weather-tight enclosure, make the 400 Series an ideal choice for most ordinary location applications. Its worldwide use is assured with approvals and certifications to agency standards. Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions. Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.

How to order
Select a Type
Refer to the “Type” section below.
Determine type number based on switch
output, enclosure, adjustment and reference.

Select a Model

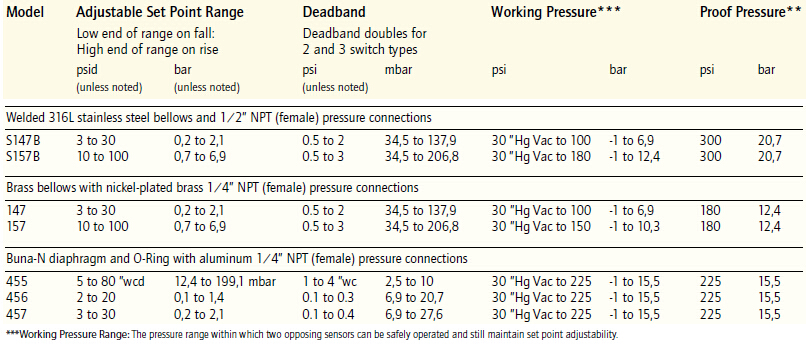

Refer to the “Model Charts”
Determine model based on adjustable
range, deadband and proof pressure.
Fill in the model portion of your part number
with the corresponding number.

Select an Option
Refer to the “Options” section
Determine option number based on switch
output, optional materials or other product
enhancements.
Fill in the option portion of your part number
with the corresponding number.
Leave “option” portion blank if no options
are needed. FOR MULTIPLE OPTIONS: Call
United Electric Controls.

STORAGE TEMPERATURE	-65 to 160°F (-54 to 71°C)
AMBIENT TEMPERATURE LIMITS	-58 to 160°F (-50 to 71°C); models 36-39, 520-525, 540-548, 701-705: 0 to 160°F (-17 to 71°C); Types 820E, 822E: -40 to 160°F (-40 to 71°C) set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change; less than 2% for types E121& E122
SET POINT REPEATABILITY	Temperature models: ±1% of adjustable range Pressure models 126-164, S126B-S164B, 171-174, 270-274, 358-376, 520-535, 540-543, 560-564, 701-705: ±1% of adjustable range; models 450-559: ±1/2% of adjustable range; models 36-39, 183-194, 483-494, 544-548, 565-567, 612-680: ±1 1/2% of adjustable range
SHOCK	Set point repeats after 15 G, 10 millisecond duration
VIBRATION	Set point repeats after 2.5 G, 5-500 Hz
ENCLOSURE	Die cast aluminum (max. 0.4% copper), epoxy powder coated; gasketed; coverlock; internal set point lock standard on types J, C, F; gasketed aluminum tamper-resistant dial cover on types B, H, E; aluminum nameplate
ENCLOSURE CLASSIFICATION	Certified to enclosure type 4X. Types 820E, 822E; designed to meet NEMA 4 requirements with option M300; Class I, Division 1 product meet enclosure type 7; Class II, Division 1 products meet enclosure type 9. Certified to IP66 requirements
SWITCH OUTPUT	One, two or three SPDT switches, may be separated up to 100% of range except models 521-524, 531-534: 50%; models 520, 525, 530, 535, 570-572: 30%; switches may be wired “normally open” or “normally closed”
ELECTRICAL RATING	15 A 125/250/480 VAC resistive. Electrical switches have limited DC capabilities. Consult factory for additional information.
