Official UE agent UE J120K-548 UE pressure switch

UE J120K-548 Features
• Approvals include cULus, ATEX & SAA; compliance with CE and NACE standards

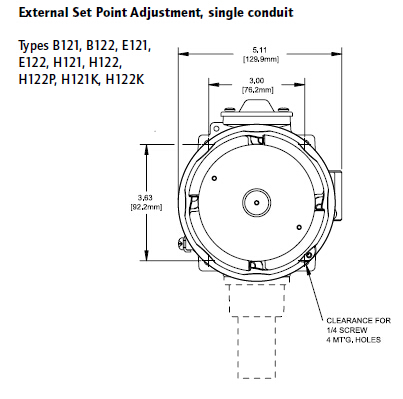

• Internal adjustment or external adjustment via calibrated dials with tamper resistant cover
• Single or Dual Output
• Wide variety of sensor materials
• Optional Hastelloy®, Monel® and Tantalum sensor material for corrosive media
• Flush mount sanitary sensors
• Stainless steel, Hastelloy®, Monel® flanges conforming to ANSI standards
• Indicating Differential Pressure Module
• Most models available for immediate delivery

STORAGE TEMPERATURE -65 to 160°F (-54 to 71°C)
AMBIENT TEMPERATURE LIMITS -58 to 160°F (-50 to 71°C); models 36-39, 520-525, 540-548, 701-705: 0 to 160°F (-17 to 71°C);
Types 820E, 822E: -40 to 160°F (-40 to 71°C) set point typically shifts less than 1% of range for a
50°F (28°C) ambient temperature change; less than 2% for types E121& E122
SET POINT REPEATABILITY Temperature models: ±1% of adjustable range
Pressure models 126-164, S126B-S164B, 171-174, 270-274, 358-376, 520-535, 540-543, 560-564,
701-705: ±1% of adjustable range; models 450-559: ±1/2% of adjustable range; models 36-39,
183-194, 483-494, 544-548, 565-567, 612-680: ±1 1/2% of adjustable range
SHOCK Set point repeats after 15 G, 10 millisecond duration
VIBRATION Set point repeats after 2.5 G, 5-500 Hz
ENCLOSURE Die cast aluminum (max. 0.4% copper), epoxy powder coated; gasketed; coverlock; internal set point
lock standard on types J, C, F; gasketed aluminum tamper-resistant dial cover on types B, H, E;
aluminum nameplate
ENCLOSURE CLASSIFICATION Certified to enclosure type 4X. Types 820E, 822E; designed to meet NEMA 4 requirements with option
M300; Class I, Division 1 product meet enclosure type 7; Class II, Division 1 products meet enclosure
type 9. Certified to IP66 requirements
SWITCH OUTPUT One or two SPDT; dual switch may be separated up to 100% of range; except type 822E where switch #2
can be set up to 25% of range span below switch #1 setpoint; switches may be wired “normally open” or
“normally closed”. Two SPDT hermetic sealed switches available on H122P models
ELECTRICAL RATING 15 A 125/250/480 VAC resistive (standard) except types H122P; 11A 125/250 VAC resistive;
B121-13272, B122-13322, E121-13273, E122-13321; 22A 480VAC resistive
REFERENCE SCALES Types B, E & H: external dial. Scale divisions vary with range.
