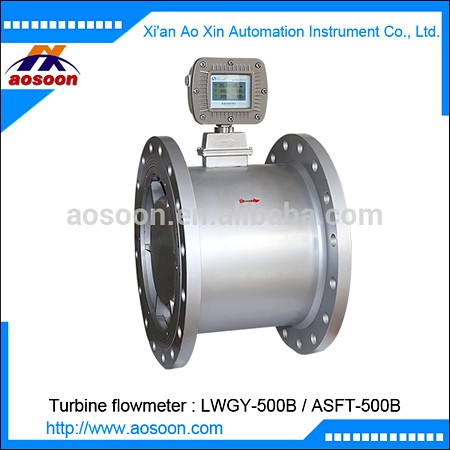

LCD display lpg turbine flow meter with 4-20ma pulse output

 LWGY ASFT LCD display lpg gas turbine flow meter with 4-20ma or pulse output

Instruction
ASFTSeries turbine flow meter has a simple structure, lightweight, high accuracy, good reproducibility, reflecting the sensitivity, easy installation and maintenance features such as a new generation of turbine flow meters, wide for measuring in closed conduits and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 * 10 ^ -6m2/ s of liquid, for kinematic viscosity greater than 5 * 10 ^ -6m2/ s of liquid, solid liquid flow meter calibration after use. If the display instrument has a special function, can also be quantitative control, excessive alarm is ideal for flow measurement and energy meter.

Features
1. High accuracy, usually up to ± 1% R, ± 0.5% R, high-precision up to ± 0.2% R.
2. The repeatability, short-term repeatability of up to 0.05% to 0.2%, it is due to good reproducibility, such as frequent calibration or online high accuracy calibration available in the trade settlement is the preferred flow meter .
3. The output pulse frequency signal, suitable for the total measurement and computer connection, no zero drift, anti-jamming capability.

	size mm)			range	range			Proof-pressure		proof-pressure (MPa)
	ND	4		0.04~0.25	0.04~0.4			6		12,16,25
	ND	6		0.1~0.6	0.06~0.6			6		12,16,25
	ND	10		0.2~1.2	0.15~1.5			6		12,16,25
	ND	15		0.6~6	0.4~8			6.3, 2.5 (flange)		4.0,6.3,12,16,
	ND	20		0.8~8	0.45~9			6.3, 2.5 (flange)		4.0,6.3,12,16,
	ND	25		1~10	0.5~10			6.3, 2.5 (flange)		4.0,6.3,12,16,
	ND	32		1.5~15	0.8~15			6.3, 2.5 (flange)		4.0,6.3,12,16,
	ND	40		2~20	1~20			6.3, 2.5 (flange)		4.0,6.3,12,16,
	ND	50		4~40	2~40			2		4.0,6.3,12,16,
	ND	65		7~70	4~70			2		4.0,6.3,12,16,
	ND	80		10~100	5~100			2		4.0,6.3,12,16,
	ND	100		20~200	10~200			2		4.0,6.3,12,16,
	ND	125		25~250	13~250			1		2.5,4.0,6.3,12,
	ND	150		30~300	15~300			1		2.5,4.0,6.3,12,
	ND	200		80~800	40~800			1		2.5,4.0,6.3,12,
