WRET-01 Pt100、Pt1000、Pt10、Pt800、Pt500 Cu50、Cu100、Cu10 -200~850℃ -50~150℃ Spring-compressed temperature transmitter

WRET-01 Pt100、Pt1000、Pt10、Pt800、Pt500 Cu50、Cu100、Cu10 -200~850℃ -50~150℃ Spring-compressed temperature transmitter

Applications
■■ For all industrial and laboratory applications
■■ Replacement measuring insert for servicing

Special features
■■ Application ranges from 0 ... 1,200 °C
■■ Made of mineral-insulated sheathed cable
■■ For all standard thermowell designs
■■ Spring-loaded design
■■ Explosion-protected versions

Model	Graduation		Temp range	thermal response time	Thermowell material
WRET-01	E		0-400 ℃	<5	SST1Cr18Ni9Ti
specification

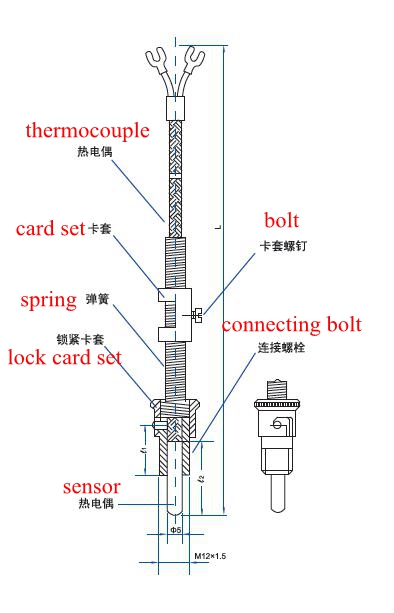

Total length L(mm)		Thermowell l2 mm			Connection bolts l1 mm
1000 1500 2000 2500 3000 3500 4000		30 30 30 30 30 30 30			35 or 70
1000 1500 2000 2500 3000 3500 4000		60 60 60 60 60 60 60			35 or 70
