Thermo couple temperature sensor temperature transmitter compressed-spring WRET-01

Description:

The working principle, the dividing characteristic and the allowable deviation of the pressure spring type fixed thermocouple, the temperature compensation of the reference point (cold junction), and the connection method of the measuring instrument and the display measuring instrument are all the same.

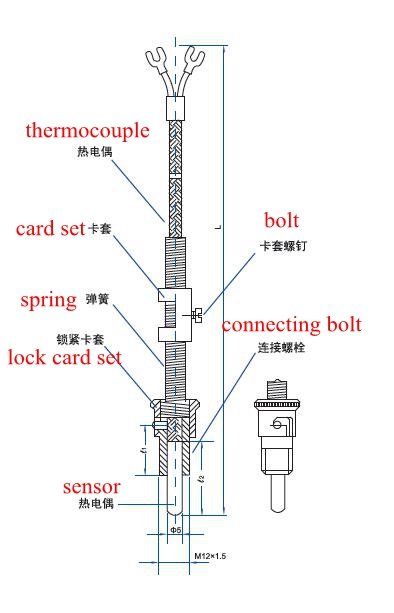

The structure of the pressure spring type fixed thermocouple is composed of a protective tube, a mounting bolt, a locking clamping sleeve, a spring and a thermocouple wire.
The homogeneous conductor of the different components of the pressure spring type fixed thermocouple is a thermal power, the temperature is higher than the working end, the lower end of the temperature is a free end, the free end is usually at a constant temperature.
According to the relationship between thermal electromotive force and temperature, made the thermocouple indexing table; indexing table is free end temperature at 0 DEG C under the different thermocouples with different indexing table.

Order information:
1.Temperature range
2.Insertion length of the stem.
3.stem diameter
4.process connection (thread, flange or clamp?)
5.explosion-proof or not?


Model Graduation Temp range thermal response time Thermowell material
WRET-01 E 0-400 ℃ <5 SST1Cr18Ni9Ti
specification
Total length L(mm) Thermowell l2 mm Connection bolts l1 mm
1000
1500
2000
2500
3000
3500
4000
30
30
30
30
30
30
30
35 or 70
1000
1500
2000
2500
3000
3500
4000
60
60
60
60
60
60
60
35 or 70
