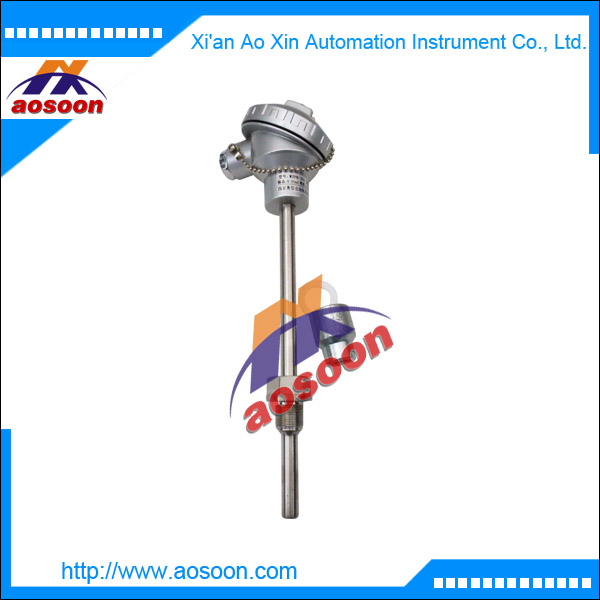

Temperature sensor temperature gauge temperature transmitter WRET-01 WRET-02 WRNX-310 WREX-310 WRNX-03 WRNX-04 WRCX-04  WRPK WRPK2 WRNK WRNK2 WREK WREK2 WRCK WRCK2

Product's Technical Parameters

Pt100:     Grade A, Ro =100  0.06Ω
               Grade B, Ro =100    0.12Ω Graduation No


Model Graduation No Temperature measuring
range(℃)
Accuracy Allowable differencet
WZPK Pt100 -200~500 A ±( 0.15+0.002|t|)
B ±( 0.30+0.005|t|)


Model Graduation Measure rangeoC Accuracy Thermal response
timeT0.5S
Diameter mm Length
L
mm
Fixed device
WZPK-173S
Pt100

-200~500

grade  A

orB
≤3 Φ3 Simplex
100
150
200
250
300
400
500
750
1000

Duplex
100
150
200
250
300
400
500
No fixed device
WZPK-174S ≤5 Φ4
WZPK-175S ≤8 Φ5
WZPK-176S ≤12 Φ6
WZPK2-175SA ≤8 Φ5
WZPK2-176SA ≤12 Φ6
WZPK-273S ≤3 Φ3 Fixed adjustable thread
WZPK-274S ≤5 Φ4
WZPK-275S ≤8 Φ5
WZPK-276S ≤12 Φ6
WZPK2-275SA ≤8 Φ5
WZPK2-276SA ≤12 Φ6
WZPK-373S ≤3 Φ3 Movable adjustable thread
WZPK-374S ≤5 Φ4
WZPK-375S ≤8 Φ5
WZPK-376S ≤12 Φ6
WZPK2-375SA ≤8 Φ5
WZPK2-376SA ≤12 Φ6
WZPK-473S ≤3 Φ3 Fixed adjustable flange
WZPK-474S ≤5 Φ4
WZPK-475S ≤8 Φ5
WZPK-376S ≤12 Φ6
WZPK2-475SA ≤8 Φ5
WZPK2-476SA ≤12 Φ6
WZPK-573S ≤3 Φ3 Movable adjustable flange
