Vane actuated detectors are designed for direct sensing of liquid flow in pipelines.

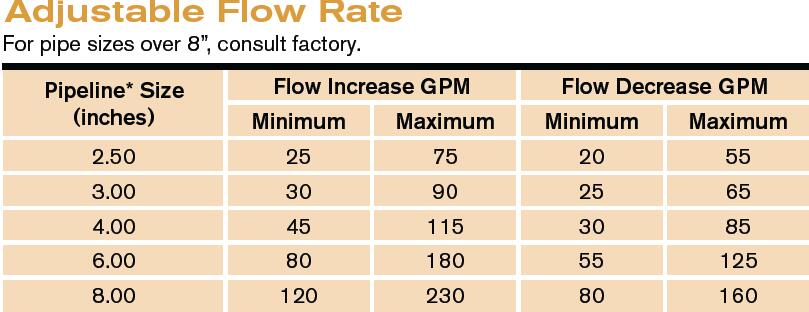

These detectors are magnetically actuated and feature rugged internal construction and all stainless trim. Minimum line pressure loss is provided by vane position at actuation. These detectors are designed for vertical mounting only. They may be adapted to a large range of pipe sizes from 2-1/2” upward.

The standard model is furnished with a vane for an 8-inch line which may be field trimmed for installation in smaller lines. Special models are available for pipe over 8-inch size. Internal trim is 300 and 400 series stainless steel. Spring material is Inconel; o-ring material is Viton.
