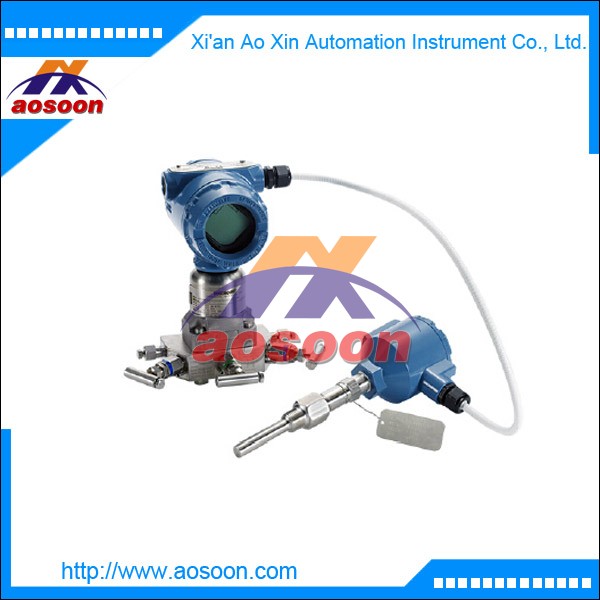

Rosemount 3051SFA annubar flow meter

Better measurement begins by selecting the best flow technology for each application. Annubar® technology has been specified for over 35 years in applications requiring performance, flexibility, reliability and lower total cost of ownership. The innovative technology of the Annubar sensors offers more advantages that save time and money.

Features of the Rosemount annubar flow meter  include:

  • Industry leading integrated DP Flowmeters
  • Energy Savings gained through minimal permanent pressure loss
  • Real-time mass and energy flow measurements available with integral temperature design
  • Flo-tap design of the 485 and 585 allow installation without system shutdown



Specifications:



Fully Integrated Flowmeter



Rosemount 3051SFA annubar flow meter with Measurement Types 1-4


Rosemount 3051SFA  annubar flow meter
Measurement Type D

Accuracy •Mass flow up to 0.8% of mass flow rate, 14:1 turndown
•Classic MV up to ±0.85 % of flow rate, 8:1 flow turndown
•Volumetric flow up to 0.8% of volumetric flow rate, 14:1 turndown
•Classic MV up to ±0.85% of volumetric flow rate, 8:1 turndown
Repeatability ± 0.1 % ± 0.1 %
Output •4-20mA signal based on HART® Communication
•WirelessHART with Smart Wireless THUM adapter
•4-20mA signal based on HART® Communication
•WirelessHART
•FOUNDATION™ fieldbus
Long Term Stability Up to 15-year stability  Up to 15-year stability
Warranty Up to 15-year limited warranty Up to 15-year limited warranty
Diagnostics •User-writable process temperature sensor limits
•Sensor Temperature as an output
•Instant Flow Verification

Advanced HART Diagnostic Suite

Line Size 2-in. to 8-in. (50 to 200 mm) – Sensor Size 1
6-in. to 36-in. (150 to 900 mm) – Sensor Size 2
12-in. to 72-in. (300 to 1800 mm) – Sensor Size 3
2-in. to 8-in. (50 to 200 mm) – Sensor Size 1
6-in. to 36-in. (150 to 900 mm) – Sensor Size 2
12-in. to 72-in. (300 to 1800 mm) – Sensor Size 3

Rosemount 3051SFA annubar flow meter
