| Model | Transmitter type | ||

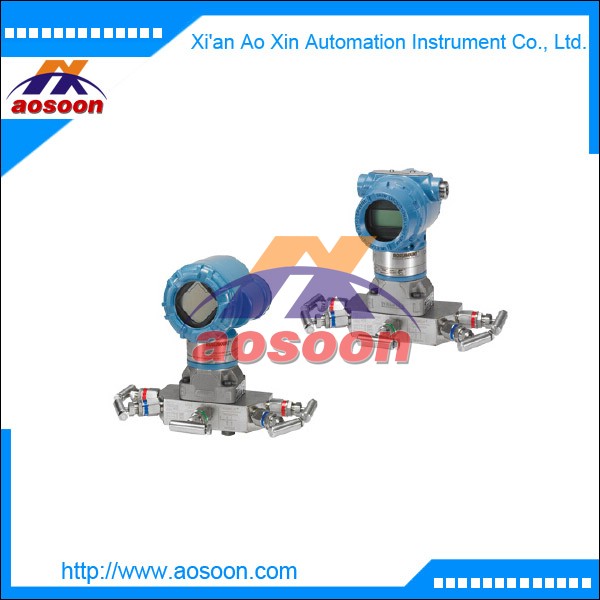

| 3051C | Coplanar Pressure Transmitter | ||
| Measurement type | |||
| D | Differential | ||
| G | Gage | ||
| A | Absolute | ||
| Pressure range | |||
| Differential (3051CD) | Gage (3051CG) | Absolute (3051CA) | |
| 1 |
–25 to 25 inH2O (-62,16 to 62,16 mbar) |
–25 to 25 inH2O (-62,16 to 62,16 mbar) |
–300 to 300 psi (-20.68 to 20.68 bar) |
| 2 |
–250 to 250 inH2O (-621,60 to 621,60 mbar) |
–250 to 250 inH2O (-621,60 to 621,60 mbar) |
0 to 150 psia (0 to 10,34 bar) |
| 3 |
–1000 to 1000 inH2O (-2.48 to 2.48 bar) |
–393 to 1000 inH2O (-0.97 to 2.48 mbar) |
0 to 800 psia (0 to 55.15 bar) |
| 4 |
–300 to 300 psi (-20.68 to 20.68 bar) |
–14.2 to 300 psi (-0.97 to 20.68 bar) |
0 to 4000 psia (0 to 275.79 bar) |
| 5 |
–2000 to 2000 psi (-137.89 to 137.89 bar) |
-14.2 to 2000 psi (-0.97 to 137.89 bar) |
N/A |
| 0 |
–3 to 3 inH2O (-7.460 to 7.46mbar) |
N/A | N/A |
3051CD0A02A1AB1H2L4M5K5 3051CD1A02A1AB1H2L4M5K5 3051CD2A02A1AB1H2L4M5K5 3051CD3A02A1AB1H2L4M5K5 3051CD4A02A1AB1H2L4M5K5 3051CD5A02A1AB1H2L4M5K5 3051CD0A02A1AB1H2L4M5E5 3051CD1A02A1AB1H2L4M5E5 3051CD2A02A1AB1H2L4M5E5 3051CD3A02A1AB1H2L4M5E5 3051CD4A02A1AB1H2L4M5E5 3051CD5A02A1AB1H2L4M5E53051CD0A02A1AB1H2L4M5I5 3051CD1A02A1AB1H2L4M5I5 3051CD2A02A1AB1H2L4M5I5 3051CD3A02A1AB1H2L4M5I5 3051CD4A02A1AB1H2L4M5I5 3051CD5A02A1AB1H2L4M5I5
3051CD0A02A1AB3H2L4M5K5 3051CD1A02A1AB3H2L4M5K5 3051CD2A02A1AB3H2L4M5K5 3051CD3A02A1AB3H2L4M5K5 3051CD4A02A1AB3H2L4M5K5 3051CD5A02A1AB3H2L4M5K53051CD0A02A1AB3H2L4M5E5 3051CD1A02A1AB3H2L4M5E5 3051CD2A02A1AB3H2L4M5E5 3051CD3A02A1AB3H2L4M5E5 3051CD4A02A1AB3H2L4M5E5 3051CD5A02A1AB3H2L4M5E53051CD0A02A1AB3H2L4M5I5 3051CD1A02A1AB3H2L4M5I5 3051CD2A02A1AB3H2L4M5I5 3051CD3A02A1AB3H2L4M5I5 3051CD4A02A1AB3H2L4M5I5 3051CD5A02A1AB3H2L4M5I
3051CD1A22A1A 3051CD2A22A1A 3051CD3A22A1A 3051CD4A22A1A 3051CD5A22A1A 3051CD1A22A1AB4 3051CD2A22A1AB4 3051CD3A22A1AB4 3051CD4A22A1AB4 3051CD5A22A1AB4 3051CD1A22A1AB4M5 3051CD2A22A1AB4M5 3051CD3A22A1AB4M5 3051CD4A22A1AB4M5 3051CD5A22A1AB4M5 3051CD1A22A1AB4M5DF 3051CD2A22A1AB4M5DF 3051CD3A22A1AB4M5DF
