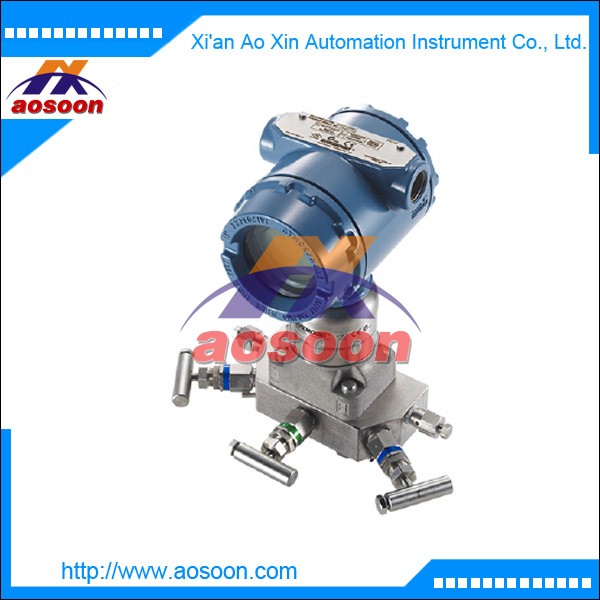

Emerson Rosemount 3051CD diferential pressure transmitter CO CQ provided

Emerson Rosemount 3051CD diferential pressure transmitter CO CQ provided

Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential, Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless integration with manifolds, flow and level solutions. Capabilities include: Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code DA0)
Local Operator Interface with straightforward menus and built-in configuration buttons (Option Code M4) Safety Certification (Option Code QT)

Advanced pressure transmitter with a flexible Coplanar platform and unmatched long-term stability and reliability
The Rosemount 3051C smart pressure transmitter combines advanced technology with the versatile Coplanar ™ process connection to create a new standard in pressure measurement technology. Even under the most demanding conditions, the performance specifications of the Rosemount 3051C smart pressure transmitter provide unmatched long-term stability and reliability

Specification:

output:	4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
range:	0-0.01 in H2O to 0-2000 psid
accuracy:	0-1: +/-0.1% of span
power:	4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load
materials:	Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
fluid:	Sensor fill fluid: Silicone, Inert (Halocarbon)
mounting:	Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST

Commonly used models

3051CD0A02A1AB1H2L4M5 3051CD1A02A1AB1H2L4M5 3051CD2A02A1AB1H2L4M5 3051CD3A02A1AB1H2L4M5 3051CD4A02A1AB1H2L4M5
3051CD5A02A1AB1H2L4M5 3051CD0A02A1AB3H2L4M5 3051CD1A02A1AB3H2L4M5 3051CD2A02A1AB3H2L4M5 3051CD3A02A1AB3H2L4M5 3051CD4A02A1AB3H2L4M5 3051CD5A02A1AB3H2L4M5 3051CD0A02A1AB1H2L4M5K5 3051CD1A02A1AB1H2L4M5K5 3051CD2A02A1AB1H2L4M5K5 3051CD3A02A1AB1H2L4M5K5 3051CD4A02A1AB1H2L4M5K5 3051CD5A02A1AB1H2L4M5K5 3051CD0A02A1AB1H2L4M5E5 3051CD1A02A1AB1H2L4M5E5 3051CD2A02A1AB1H2L4M5E5 3051CD3A02A1AB1H2L4M5E5 3051CD4A02A1AB1H2L4M5E5 3051CD5A02A1AB1H2L4M5E53051CD0A02A1AB1H2L4M5I5 3051CD1A02A1AB1H2L4M5I5 3051CD2A02A1AB1H2L4M5I5 3051CD3A02A1AB1H2L4M5I5 3051CD4A02A1AB1H2L4M5I5 3051CD5A02A1AB1H2L4M5I5
