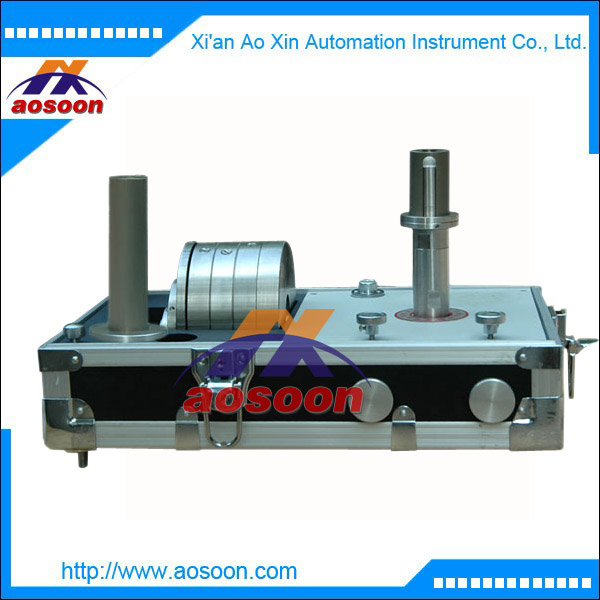

Piston pressure gauge piston calibration gauge piston calibration manometer

Product description
Piston type pressure gauge is the standard pressure measuring instrument from Pascal's law and the hydrostatic equilibrium principle of a high accuracy, high reproducibility and high reliability. Based on the piston pressure gauge is often referred to as the piston pressure gauge or pressure gauge, also called pressure balance, mainly used for the measurement of room, laboratory and production or scientific experiments as part of the pressure standard for use, there will be a piston type pressure gauge is directly applied to high reliability monitoring and monitoring of other local link voting instrument.


Model   YS-6 YS-60 YS-250 YS-600
Technical parameters Unit

Measuring range
    0.04-0.6MPa 0.1-6MPa 0.5-25MPa 1-60MPa
Nominal upper limits MPa 0.6 1.6 25 60
Nominal lower limits MPa 0.04 0.1 0.5 1
Measurement upper limits MPa 0.6 6 60 60
Measurement lower limits MPa 0.04 0.1 0.5 1
Piston nominal area CM2 1 1 0.5 0.1
Chassis and piston Pressure MPa  0.04 0.5 0.5 1
  Pressure Mpa  0.001;0.05 0.1;0.5 0.5;2.5 1;5
  Quantity Pc 6;10 4;11 4;9 4;11
Connection   M20*1.5 M20*1.5 M20*1.5 M20*1.5
Weight kg 35 65 75 95
