USA CCS Vacuum pressure switch CCS 604G 604P 604V

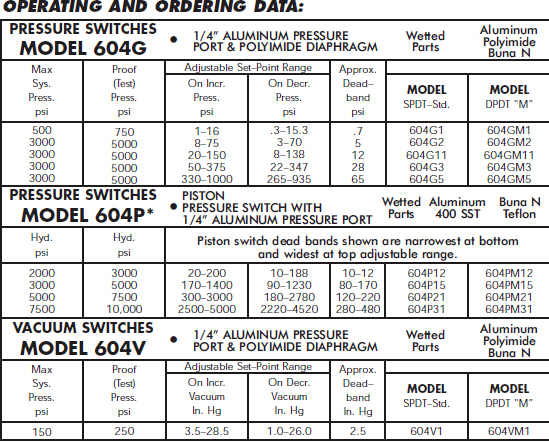

CCS 604G 604P 604V Standard Features:
• U.L. Listed
• NEMA: 4, 13
• Weatherproof
• Internal Case Ground
* For High Cycling – Long Life –
Hydraulic Applications
AMBIENT TEMP. RANGE
–30° to 160° F
–34° to 71° C
ENCLOSURE/CERTIFICATIONS:
All Models shown are Underwriter’s
Laboratories, Inc. listed in the Recognized
Components Index, Guide NKPZ “Motor
Controllers, Float and Pressure Operated,”
File No. E72038.
Models 604GM1 & 604GX1 have an approximate
dead band of .9 psi.

Options Code:
“A” Viton O–ring
“F” Ethylene Propylene O–ring
“J” CSA Approved
File No. LR22665
“7008” Gold Contacts
“7038” SST Port and SST Piston
(604P Models Only)
