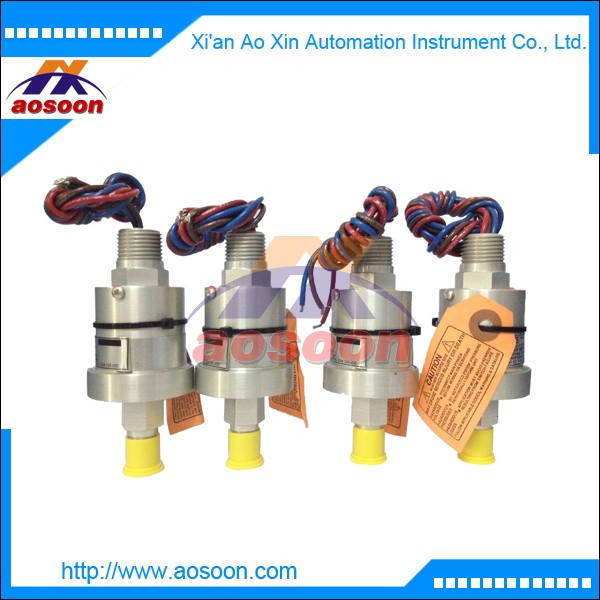

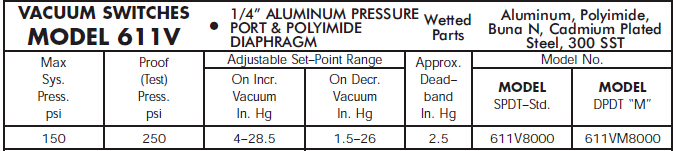

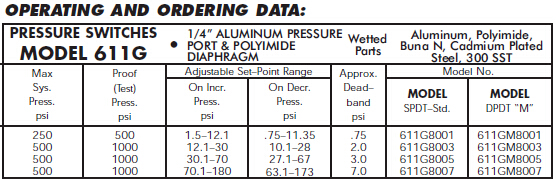

CCS vacuum explosion-proof switch 611G 611GE 611V 611VE

CCS vacuum explosion-proof pressure switch 611G 611GE 611V 611VE

611G 611GE 611V 611VE Standard Features:
NEMA: 4, 13
Weatherproof

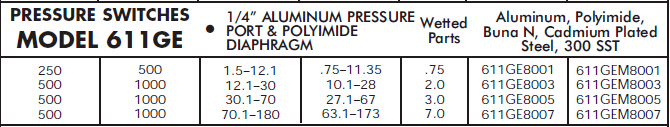

Model 611GE/611VE
U.L./CSA
Explosion Proof: Div. 1, 2
NEMA: 4, 7, 9, 13
AMBIENT TEMP. RANGE
–30° to 160° F
–34° to 71° C
ENCLOSURE/CERTIFICATIONS:
Div. 1 explosion–proof and hermetically
sealed electrical assembly Part No.
46–1058 (46–1061 for “M” model option),
listed by both Underwriter’s Laboratories,
Inc. (File No. E32961) and CSA Testing
Laboratories (File No. 22921) for hazardous
locations, Class 1, Groups A, B, C, and D;
Class 2 Groups E, F, and G.
611GE
Options Code:
“A” Viton O–ring
“F” Ethylene Propylene O–ring
“7008” Gold Contacts
“7052” Exp. Proof w/3’ Leads
“7054” Exp. Proof w/6’ Leads
“7076” Teflon Wire
