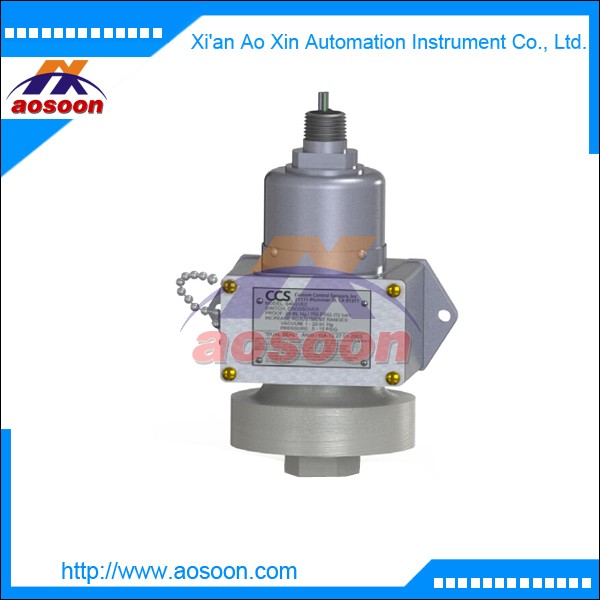

CCS Vacuum pressure switch CCS 646VE1 Explosion proof

CCS Vacuum pressure switch 646VE1 CCS Explosion proof

CCS 646VE1 Standard Features:
• U.L. / CSA
Explosion Proof: Div. 1, 2
• NEMA: 4, 7, 9, 13
AMBIENT TEMP. RANGE
–30° to 160° F
–34° to 71° C
ENCLOSURE/CERTIFICATIONS:
Div. 1 explosion–proof and hermetically
sealed electrical assembly Part No.
17–51 (17–73 for “M” model option), listed
by both Underwriter’s Laboratories, Inc. (File
No. E32961) and CSA Testing Laboratories
(File No. 22921) for hazardous locations,
Class 1, Groups A, B, C, and D; Class 2
Groups E, F, and G.
Options Code:
“A” Viton O–ring
“F” Ethylene Propylene O–ring
“Y” EECS Certified to EXsIIT5
“7008” Gold Contacts
“7038” SST Port and SST Piston
(PE Models Only)
“7076” Teflon Wire
