Customer Control Sensors(CCS) 675GE 675DE 675VE switch

Customer Control Sensors(CCS) 675GE 675DE 675VE switch

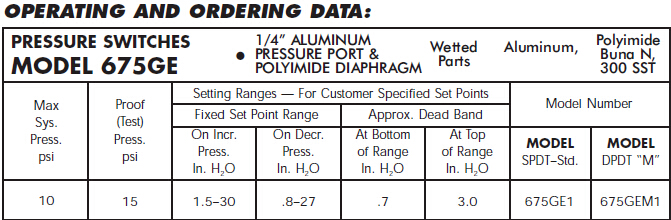

Press. .8” to 30” H2O

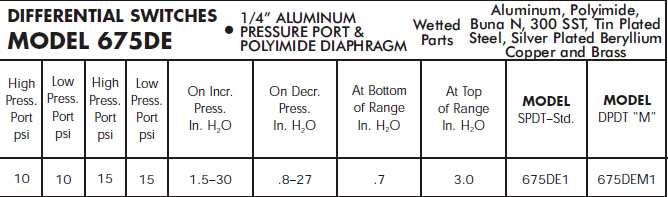

Diff. .8” to 30” H2O

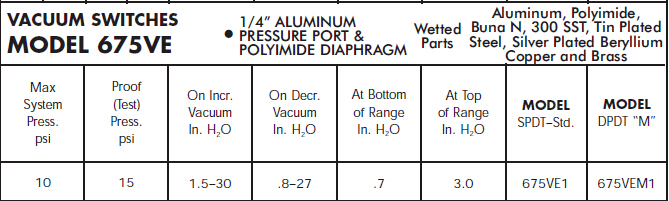

Vac. .8” to 30” H2O

Customer Control Sensors(CCS) 675GE 675DE 675VE switch Standard Features:
U.L./CSA
Explosion Proof: Div. 1, 2
NEMA: 4, 7, 9, 13
AMBIENT TEMP. RANGE
–30° to 160° F
–34° to 71° C
ENCLOSURE/CERTIFICATIONS:
Div. 1 explosion–proof and hermetically
sealed electrical assembly Part No.
17–52 (17–283 for “M” model option), listed by both Underwriter’s Laboratories, Inc. (File No. E32961) and CSA Testing Laboratories (File No. 22921) for hazardous locations, Class 1, Groups A, B, C, and D; Class 2
Groups E, F, and G. Models 675GEM1, 675DEM1, and 675VEM1 have an approximate dead band of 1.5 In. H2O.

Options Code:
“A” Viton O–ring
“7008” Gold Contacts
“7076” Teflon Wire
